The Chief Engineer’s Guide To Closed Loop System Efficiency
In modern engineering and facility management, closed loop systems play a vital role in achieving precision, safety, and efficiency. A closed loop control system continuously monitors its performance through a feedback loop, automatically adjusting its operation to reach the desired output. Unlike an open loop control system, which operates without feedback or corrective input, closed systems rely on sensors and controllers to maintain stable and consistent results.
These systems are found across diverse applications, from industrial HVAC and water treatment networks to automotive and electronic control systems. For chief engineers, understanding how these loops function is more than a technical requirement—it’s the foundation for improving operational efficiency, conserving energy, and reducing long-term maintenance costs. This guide explores how such systems maintain optimal performance, the common challenges that can disrupt them, and practical methods to ensure they continue operating at peak efficiency in real-world environments.
How Closed Loop Systems Work

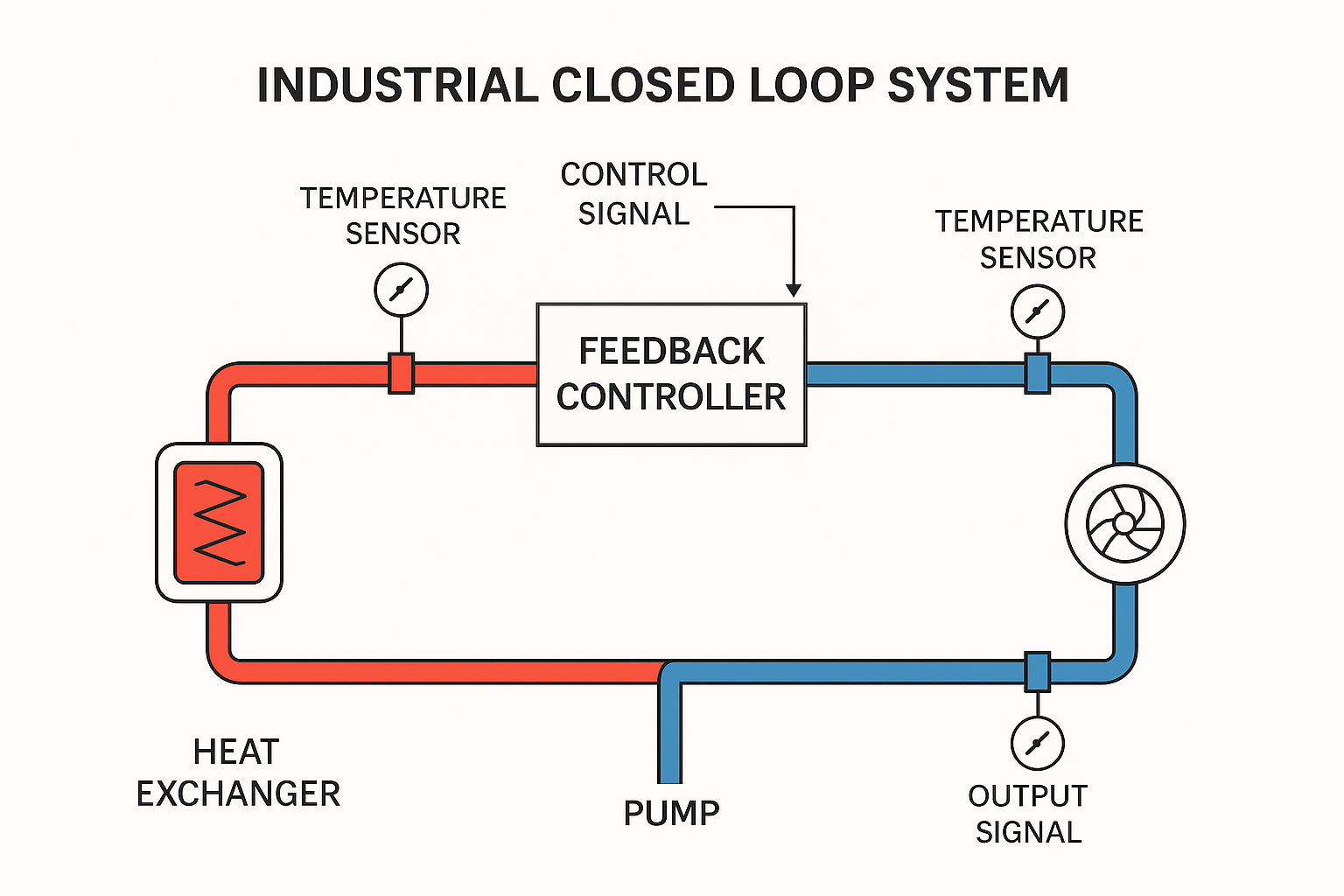

A control system is designed to regulate a process or machine by comparing its actual value with a target or desired state. In a closed loop, this regulation happens automatically through a network of sensors, controllers, and actuators. The system receives a reference input, which represents the performance goal or target condition. It then measures the system output using sensors to determine the actual condition.
The difference between the desired and actual values produces an error signal, which the controller interprets to generate a corrective control signal. This signal triggers an actuator or device that adjusts the controlled variable, such as flow, pressure, or temperature, to minimize the error. The result of this adjustment becomes the feedback signal, completing the feedback control system cycle.
A familiar example is a thermostat that automatically regulates temperature. It senses deviations from the set point and alters heating or cooling actions until the room reaches equilibrium. Through this continuous process, closed loops maintain accurate control and stability, even when external conditions fluctuate.
Comparing Closed Loop vs Open Loop Control
To understand the advantages of closed loops, it helps to compare them with an open loop control system. An open loop system operates strictly based on its initial settings, without receiving any information about its output performance. Once activated, it follows a fixed process with no feedback or correction, which means it cannot adapt if external conditions change.
A feedback control approach, on the other hand, uses a feedback path to continuously compare the system’s output with its set point or target condition. When a difference is detected, the controller adjusts the process automatically. This capability enables control loops to respond dynamically and maintain consistent results.
Comparison: Closed Loop vs Open Loop Systems
| Aspect | Open Loop Control System | Closed Loop Control System |
|---|---|---|
| Feedback | No feedback path; output not measured or compared | Uses a continuous feedback loop to monitor performance |
| Adaptability | Cannot adjust for disturbances or changes | Automatically corrects deviations from the set point |
| Accuracy | Depends on initial calibration and stable conditions | Provides high accuracy through constant adjustment |
| Human Interaction | Requires manual monitoring and control | Automatically regulates without human intervention |
| Energy Efficiency | May waste energy due to over- or under-correction | Designed to operate efficiently and maintain stability |
| Example | Manual car throttle, automatic electric iron | Cruise control, thermostat, industrial HVAC systems |
A practical comparison can be seen between manual acceleration and cruise control. The first represents an open loop control, where the driver constantly monitors and adjusts speed. The second uses sensors and feedback to automatically maintain a chosen velocity. In engineering systems, this difference allows closed loops to operate efficiently, reducing human error and improving energy and resource management.
Key Factors That Affect Closed Loop System Efficiency
While closed loop systems are designed to maintain consistent performance automatically, their overall efficiency depends on several technical and operational factors. Understanding these variables helps engineers fine-tune each process to ensure stable control and reliable outcomes.
1. Accuracy of Sensors and Instrumentation
ensors detect the actual condition of the system, such as temperature, pressure, or flow rate. Inaccurate or poorly calibrated sensors distort the actual output, leading to incorrect control action by the feedback controller. Regular calibration is essential to preserve data integrity and maintain precise system behavior.
2. Control Algorithms and Tuning
Efficient loop systems rely on well-designed control algorithms to process data and make quick adjustments. Improper tuning may cause overcorrection, oscillation, or sluggish responses. Engineers often use PID controllers (Proportional, Integral, Derivative) to balance stability and responsiveness.
3. System Design and Parameters
The physical system parameters—piping layout, pump capacity, heat exchangers, and materials—directly influence efficiency. Flow restrictions or poor insulation can reduce thermal transfer efficiency and increase energy consumption. Optimized layouts reduce resistance and improve overall system reliability.
4. Maintenance and Water Chemistry
In water-based or HVAC closed loop systems, corrosion, scaling, and biological fouling can degrade performance. Chemical treatment and routine cleaning keep heat transfer surfaces efficient and extend equipment life.
5. Environmental and Operating Conditions
Ambient temperature, humidity, and system load variations can impact performance. Consistent monitoring ensures that desired response levels are achieved regardless of seasonal or operational fluctuations.
Best Practices for Maintaining Efficient Closed Loop Systems
To sustain peak efficiency and reliability, chief engineers should treat closed loop systems as dynamic environments that require regular observation and precise adjustment. The following best practices are foundational for achieving long-term stability and accurate control in both mechanical and industrial applications.
Monitor Key System Parameters
Frequent inspection of flow rate, temperature, pH, and pressure keeps system performance within its design range. Regular testing ensures that each variable remains close to its set point, preserving thermal balance and preventing equipment stress.
Use Proper Control Algorithms and Tuning
Well-tuned PID controllers are essential to maintain system balance. These controllers interpret feedback through a mathematical relationship that adjusts system responses in real time. Proper tuning helps reduce errors between actual and target readings, ensuring efficient system stability.
Maintain Water and Chemical Quality
Clean water chemistry supports consistent feedback control. Corrosion inhibitors, biocides, and glycol solutions should be applied according to the manufacturer’s specifications. Contaminated or degraded fluid compromises heat transfer and accelerates wear on pumps and valves.
Inspect Sensors and Calibrate Regularly
Sensors and transmitters are the “eyes” of the feedback control process. Routine calibration ensures that the desired output condition matches the system’s actual condition, especially in temperature and conductivity-sensitive loops.
Schedule Preventive Maintenance
Routine cleaning of strainers, filtration systems, and heat exchangers keeps circulation smooth and reliable. Seasonal reviews allow engineers to confirm that systems continue to perform near the desired level, even as environmental demands shift throughout the year.
How ClearWater Industries Supports Closed Loop System Efficiency
ClearWater Industries (CWI) provides expert solutions to help facilities maintain the performance and longevity of their closed loop systems. Through its Closed Loop Water Treatment Programs, CWI delivers complete protection against corrosion, scale buildup, and microbial growth—three of the most common causes of loop inefficiency and premature system failure.
CWI’s specialists design system-specific programs tailored to various industrial applications, including heating systems, chilled water loops, and process water systems. Each program uses advanced corrosion inhibitors, glycol management, and precise chemical control to maintain clean, efficient circulation.
In addition to treatment programs, ClearWater offers continuous monitoring, water quality testing, and data-driven maintenance scheduling. These proactive services ensure that system performance remains consistent across seasonal cycles.
Chief engineers and facility managers can rely on ClearWater Industries to protect their infrastructure and ensure operational reliability.
Ready to optimize your closed loop performance? Contact ClearWater Industries today for a customized system evaluation and cost-saving maintenance plan.
Frequently Asked Questions
A closed loop feedback system uses continuous feedback to adjust its operation and maintain the desired output. Unlike open systems, it compares the output signal to the reference input and corrects any errors automatically. Such systems are common in industrial automation, robotics, and nuclear power plants, where precise control is critical.
A fully automatic control system operates without human interaction, relying on sensors and controllers that automatically achieve the desired state. A home thermostat is a simple example: it reads the actual temperature and switches heating or cooling on or off in such a way that it reaches the set speed or temperature efficiently.
The closed loop transfer function mathematically describes how the feedback system responds to input. Engineers use a block diagram to represent the transfer function, showing how changes in input affect the output signal and overall system stability. Understanding the closed loop transfer helps fine-tune complex industrial processes.
Positive feedback amplifies the output instead of correcting it, which can make a complex system unstable. While useful in certain electronic devices like amplifiers, most feedback control applications use negative feedback for stability.
Many organizations choose closed loops because they offer many advantages: higher efficiency, safety, and precision. They automatically regulate conditions without constant oversight, minimize downtime, and provide predictable performance. For further information, engineers can consult CWI’s technical resources or request expert consultation.
