Cooling Tower Corrosion Inhibitors Explained
Cooling systems are essential to maintaining temperature control in commercial buildings and industrial cooling systems. At the center of many facilities is the cooling tower, where heat is rejected through evaporation and continuous contact between water, air, and metal components. This constant exposure creates a highly corrosive environment that can damage metals, reduce efficiency, and shorten equipment life.
A properly selected cooling tower corrosion inhibitor plays a critical role in protecting system materials from degradation. By controlling electrochemical reactions on the metal surface, these inhibitors help prevent corrosion, maintain heat transfer efficiency, and extend the life of piping, heat exchangers, and structural components.
Understanding how corrosion occurs and how corrosion inhibitors function is essential for designing an effective water treatment program. In the sections below, we will explain the mechanisms of corrosion, the types of inhibitors available, and the factors that influence performance in modern cooling systems.
How Corrosion Occurs in Cooling Towers
Corrosion occurs naturally in aqueous systems when metal surfaces are exposed to water, oxygen, and dissolved salts. In a cooling tower, the continuous circulation of cooling water, elevated temperature, and airborne contaminants create ideal conditions for electrochemical reactions. Over time, this leads to material degradation, loss of structural integrity, and reduced heat transfer efficiency.
At its core, corrosion is driven by the formation of a corrosion cell on a metal surface. When mild steel or other metals are present in a corrosive environment, microscopic differences on the surface create distinct anodic and cathodic sites. These sites form the foundation of the corrosion mechanism.
The Corrosion Cell Mechanism
A corrosion cell requires four elements:
- An anode, where metal loss occurs
- A cathode, where reduction reactions occur
- An electrolyte, typically cooling water
- The presence of oxygen
At the anodic sites, iron in mild steel oxidizes and releases electrons. These electrons travel to cathodic sites, where oxygen is reduced. This electrochemical process increases corrosion potential and produces corrosion products such as iron oxides. In open recirculating systems, constant oxygen replenishment accelerates general corrosion and may lead to pitting type corrosion, which is localized and more damaging.
Without an effective cooling tower corrosion inhibitor, both steel and copper alloys in cooling systems can experience progressive surface damage, weakening piping, heat exchangers, and other critical components.
Types of Corrosion Inhibitors Used in Cooling Systems
Corrosion inhibitors are chemical compounds added to cooling water to reduce metal loss and stabilize system materials. A properly selected cooling tower corrosion inhibitor is designed specifically to protect mild steel, copper, and other metals commonly found in industrial cooling systems. The goal is not to eliminate reactions entirely, but to control them by forming a protective barrier or altering electrochemical activity at the metal surface.
Anodic Inhibitors
An anodic inhibitor works by targeting anodic sites where metal dissolution occurs. These inhibitors promote the forming of a stable protective layer on mild steel surfaces, reducing the rate at which iron oxidizes. Zinc is commonly used in this role, sometimes in the form of zinc chloride, to enhance mild steel corrosion protection in open recirculating systems.
When properly controlled, zinc-based programs provide effective inhibitor performance by reducing general metal loss and stabilizing corrosion potential.
Cathodic Inhibitors
Cathodic inhibitors act on cathodic sites by slowing the reduction reactions that occur in the presence of oxygen. By limiting the electrochemical activity at the cathode, these inhibitors reduce the overall corrosion rate. This approach is often used in combination with anodic strategies to improve overall corrosion protection.
Film-Forming and Blended Programs
Some inhibitors function by forming a thin protective film across the metal surface. These film-forming inhibitors create a barrier between the cooling water and system materials, reducing exposure to corrosive conditions.
In many cases, a cooling tower corrosion inhibitor program uses a combination of anodic and cathodic inhibitors. Blended chemical formulations may include zinc, phosphates, and other stabilizing compounds to protect both mild steel and copper alloys within the same system.
Comparison of Common Inhibitor Types
| Type | Primary Target | How It Works | Common Application |
|---|---|---|---|
| Anodic inhibitor | Mild steel | Forms protective layer at anodic sites | Open recirculating systems |
| Cathodic inhibitor | Cathodic sites | Slows reduction reactions | High oxygen environments |
| Zinc-based programs | Steel surfaces | Enhances protective film formation | Industrial cooling systems |
| Film-forming inhibitors | Multiple metals | Creates surface barrier | Mixed-metal systems |
Selecting the most effective inhibitor depends on system design, water chemistry, and operating conditions.
Also read our comparison guide for nitrite, molybdate and organic corrosion inhibitors.
Factors That Influence Inhibitor Performance
Even the most effective inhibitor will underperform if system conditions are not properly controlled. A cooling tower corrosion inhibitor must function within a dynamic environment where water chemistry, operating cycles, and biological activity constantly shift. Successful corrosion inhibition depends on understanding and managing the following factors.
Water Chemistry Variables
Several water quality parameters directly affect corrosion control:
- Temperature, higher heat accelerates electrochemical reactions
- Alkalinity, which influences buffering capacity and metal stability
- Hardness, particularly calcium hardness that contributes to scale formation
- Chlorine levels, especially when oxidizing biocides are used
- Cycles of concentration, which increase dissolved solids and buildup

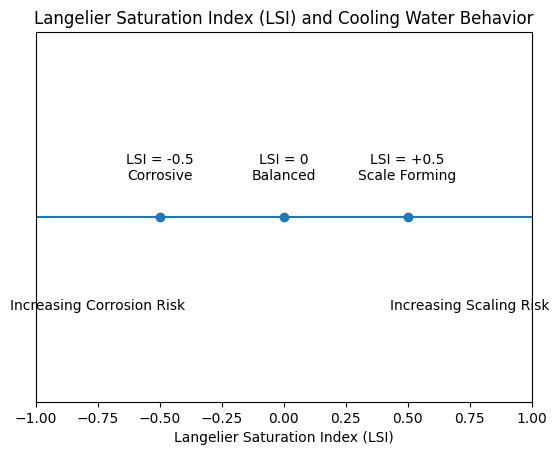

The Langelier Saturation Index is often used to evaluate scaling or corrosive tendencies. If water becomes too acidic or aggressive, corrosion rates increase. If it becomes too scale forming, deposition on heat exchangers can create under-deposit corrosion and reduce system efficiency.
Interaction with Scale and Biofouling Control
Corrosion control cannot be separated from overall water treatment strategy. Scale inhibitors and polymeric dispersants help manage hardness and prevent deposition on metal surfaces. These polymers reduce fouling and improve inhibitor contact with the metal surface.
Oxidizing biocides such as chlorine are often applied at low levels to manage microbial growth. However, excessive oxidizing conditions can increase corrosion potential if not balanced properly. For this reason, proper product selection and program control are essential.
A cooling tower corrosion inhibitor must be part of a coordinated process that accounts for scale, biological activity, and material compatibility within the system.
Also read: Cooling Tower Chemical Treatment and Legionella Prevention in Commercial Buildings
Open vs Closed Loop Cooling Systems
Cooling systems vary significantly in design, and corrosion control strategies must be designed specifically for each configuration. The amount of oxygen exposure, water turnover, and contaminant loading directly affects how corrosion develops within the system.
Open recirculating systems, such as most cooling tower applications, continuously expose cooling water to air. This increases dissolved oxygen levels and accelerates electrochemical reactions on steel and copper surfaces. Because evaporation concentrates dissolved solids, these systems often require a robust cooling tower corrosion inhibitor program supported by scale control and biological treatment.
Closed loop cooling systems operate with minimal exposure to air. Since oxygen is limited after initial startup, corrosion rates are generally lower. However, improper treatment, acidic conditions, or material incompatibility can still lead to degradation in piping and heat exchangers.
System Comparison
| System Type | Oxygen Exposure | Corrosion Risk | Treatment Design |
|---|---|---|---|
| Open recirculating systems | High | Elevated | Multi-chemical program including corrosion inhibitors |
| Closed loop cooling systems | Low after startup | Moderate | Designed specifically for low oxygen conditions |
| Once through cooling systems | Variable | Site dependent | Based on water quality and materials |
Understanding the system type is critical to selecting an appropriate corrosion control strategy.
Monitoring and Verification of Corrosion Protection
Implementing a cooling tower corrosion inhibitor program is only the first step. Ongoing monitoring is essential to verify that corrosion inhibition is performing as intended and that system conditions remain within acceptable limits.
One of the most widely used tools for evaluating corrosion rates is the corrosion coupon. These standardized metal samples, often made of mild steel or copper, are installed within the system and exposed to circulating water for a defined period. After removal, technicians measure metal loss to determine the effectiveness of the protection strategy.
In addition to corrosion coupons, a comprehensive monitoring process typically includes:
- Routine water analysis for pH, alkalinity, hardness, and inhibitor levels
- Visual inspection of piping, heat exchangers, and structural components
- Tracking corrosion trends over time
- Adjusting chemical feed rates based on system performance
Consistent testing ensures that corrosion control remains aligned with system conditions, helping prevent unexpected degradation and costly repairs.
Professional Cooling Tower Treatment and Corrosion Control in the Northeast
Cooling tower performance depends on managing three primary risks: deposition, corrosion, and microbial growth. In industrial cooling systems across Connecticut, Massachusetts, New York, and New Jersey, these challenges can significantly impact efficiency, reliability, and equipment lifespan.
ClearWater Industries delivers comprehensive cooling tower treatment services designed to address all three areas through an integrated water treatment approach. Rather than relying solely on a cooling tower corrosion inhibitor, programs are structured to balance corrosion protection, scale control, and biological management.
Corrosion control strategies include:
- Specialized inhibitor programs tailored to system materials
- pH optimization to reduce corrosive conditions
- Metal specific protection for mild steel and copper alloys
- Routine monitoring and testing
- Preventive maintenance planning
For more details, read our Cooling Tower Treatment Services Guideand Cooling Water Treatment Solutions for Commercial & Industrial Facilities in the Northeast
Through a formal corrosion studies program, ClearWater tracks metal loss using corrosion coupons evaluated at 30, 60, and 90 day intervals. This data driven process ensures that corrosion inhibition performance remains within acceptable limits and allows for precise program adjustments.
Comprehensive treatment programs also incorporate:
- Custom blended chemical treatments
- Automated feed and control systems
- Advanced biological control, including Legionella testing and DNA based analysis
- Performance monitoring and trend reporting
- Compliance documentation and operator support
By combining monitoring, control, and customized chemical strategies, ClearWater helps facilities protect cooling towers, heat exchangers, and piping systems while maintaining operational reliability.
To learn more, contact ClearWater today.
Frequently Asked Questions
Pitting occurs when localized anodic sites develop on a metal surface, often due to oxygen concentration differences, deposition, or low inhibitor levels. This pitting type corrosion can penetrate steel rapidly if corrosion protection is not properly maintained.
Oxidizing biocides such as chlorine are necessary for microbial control, but excessive or poorly controlled dosing can increase corrosion potential. Maintaining low levels and proper control helps balance biological treatment with corrosion inhibition.
Scale inhibitors and polymeric dispersants prevent mineral scale and deposition on heat exchangers and piping. Without scale control, buildup can create under-deposit corrosion and interfere with inhibitor performance.
Yes. Copper alloys are susceptible to corrosion in aggressive or acidic water conditions, especially when temperature and oxidizing conditions fluctuate. Metal specific inhibitors are often required to protect both steel and copper components.
Corrosion coupons are commonly evaluated at 30, 60, and 90 day intervals to measure metal loss and verify program effectiveness. Regular analysis allows adjustments to the cooling tower corrosion inhibitor program before significant degradation occurs.
