Cycles of Concentration in Cooling Towers Explained
In a typical cooling tower system, water continuously circulates to remove heat from process equipment. As part of this process, water evaporates, which is essential for cooling. However, while pure water leaves as vapor, minerals and impurities remain behind in the recirculating water, gradually increasing in concentration over time.
This buildup of dissolved material is measured through cycles of concentration, a key concept in understanding how efficiently a system operates. Simply put, it reflects how many times the cooling tower water has been reused compared to the amount of makeup water added to replace evaporative losses. As evaporation continues, the concentration ratio rises, affecting water chemistry and system behavior.
Understanding this balance is critical. If not properly managed, increasing concentrations can lead to scaling, corrosion, and reduced performance. On the other hand, optimizing cycles can improve water efficiency and reduce operating costs, making it a central focus in modern cooling tower operation.
What Are Cycles of Concentration?
In cooling towers, cycles of concentration describe how concentrated the cooling tower water becomes as it is reused over time. As fresh makeup water enters the system to replace losses from evaporation, it brings in a baseline level of dissolved solids. When water circulates and evaporates, those solids remain behind, causing the concentration to increase with each cycle.
This concept is typically measured by comparing the amount of total dissolved solids in the system water to that in the incoming makeup water. The result reflects how many times the water has been concentrated relative to its original state.
At a basic level, cycles of concentration can be understood through the relationship between key components in the system:
- Makeup water, which introduces fresh water and minerals into the system
- Recirculating water, which continuously cycles through the cooling process
- Dissolved solids, which accumulate as evaporation occurs
In simple terms, cycles of concentration represent the ratio between system water and incoming water quality. As this concentration increases, so does the need for careful monitoring and control, since higher levels of dissolved material can directly impact system performance and water chemistry.
Also read: How Natural Draft Cooling Towers Work
Why Cycles of Concentration Matter in Cooling Tower Operation
In any cooling tower system, maintaining proper cycles of concentration is essential for balancing efficiency, reliability, and risk. While higher cycles can improve water savings, they also increase the likelihood of operational problems if not properly controlled.
Scaling and Heat Transfer Efficiency
As concentration increases, dissolved minerals can exceed their solubility limits and begin forming scale on heat transfer surfaces. This is especially common with compounds like calcium carbonate, which can create hard scale deposits inside a heat exchanger. Even a thin layer of scale can significantly reduce heat transfer efficiency, forcing the system to work harder and increasing energy consumption.
Corrosion Risks
Improper control of water chemistry can also lead to elevated corrosion rates. High concentrations of dissolved solids, combined with imbalanced treatment, can degrade metal components throughout the system. Monitoring tools such as corrosion coupons are often used to evaluate how aggressively the water is affecting system materials.
Biological Growth and Safety
Elevated nutrient levels and warmer conditions can promote bacterial growth, including microorganisms that pose health risks. In poorly managed systems, the buildup of organic matter can further support microbial activity, increasing the need for effective control measures.
Impact on System Performance and Costs
All of these factors ultimately affect system performance. Reduced efficiency, equipment damage, and unplanned maintenance contribute to higher operating costs. Properly managing cycles helps maintain consistent performance while minimizing long-term expenses.
How Cycles Increase in a Cooling Tower System
As a cooling tower operates, the concentration of dissolved materials increases in a predictable cycle driven by evaporation. Understanding this process is key to understanding cycles and how they impact system behavior over time.
When evaporating water leaves the system, it removes only pure water vapor. The same amount of dissolved minerals remains behind in the circulating water, which leads to a gradual concentration increase with each cycle. This process continues as long as the system is running.

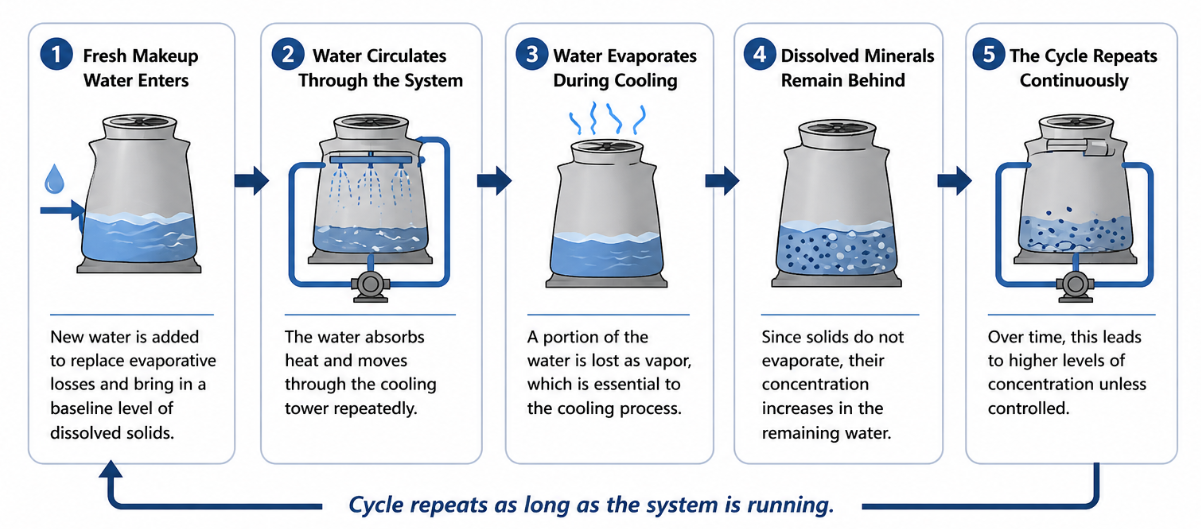

The cycle typically follows these steps:
- Fresh makeup water enters the system: New water is added to replace evaporative losses, bringing in a baseline level of dissolved solids.
- Water circulates through the system: The water absorbs heat and moves through the cooling tower repeatedly.
- Water evaporates during cooling: A portion of the water is lost as vapor, which is essential to the cooling process.
- Dissolved minerals remain behind: Since solids do not evaporate, their concentration increases in the remaining water.
- The cycle repeats continuously: Over time, this leads to higher levels of concentration unless controlled.
This ongoing buildup is a natural result of the cooling process, but without proper management, it can lead to excessive concentration levels that negatively affect system operation.
The Role of Blowdown in Controlling Cycles
To prevent excessive buildup of dissolved materials, cooling towers rely on a controlled discharge process known as cooling tower blowdown. This involves removing a portion of the concentrated water from the system and replacing it with fresh water, helping maintain safe and effective cycles of concentration.
As concentration increases, operators use a blowdown valve to release blowdown water from the system. This reduces the level of dissolved solids in the remaining water and keeps the system within an acceptable operating range. The process is typically automated and controlled based on a conductivity set point, which serves as an indicator of how concentrated the water has become.
Proper tower blowdown requires balancing two competing priorities:
- Limiting the buildup of dissolved solids to prevent scaling and corrosion
- Reducing unnecessary water loss to improve efficiency and sustainability
The impact of different blowdown approaches can be summarized below:
| Condition | Result |
|---|---|
| No blowdown | Rapid buildup of dissolved solids, increased risk of scaling and system damage |
| Excessive blowdown | Higher water usage, increased operating costs, wasted treatment chemicals |
| Controlled blowdown | Stable water chemistry, improved system performance, optimized efficiency |
By carefully managing blowdown, operators can maintain consistent cooling tower operation, protect equipment, and ensure the system runs efficiently without excessive water waste.
Finding the Right Target Cycles
Determining the appropriate target cycles is a critical part of optimizing cooling tower performance. While operating at higher cycles can significantly improve water efficiency and reduce overall water consumption, pushing the system too far can increase the risk of scaling, corrosion, and fouling.
The goal is to find a balance between maximizing reuse of water and maintaining safe operating conditions. This balance depends on several system-specific factors.
Factors That Influence Target Cycles
- Makeup water quality
The mineral content and chemistry of incoming water play a major role. Poor make up water quality limits how far cycles can be safely increased. - System design and materials
Different cooling tower designs and materials respond differently to concentration levels, affecting tolerance to scaling and corrosion. - Operating conditions
Temperature, load variations, and seasonal changes all influence how the system behaves at different cycle levels. - Risk tolerance and compliance requirements
Facilities with stricter operational or regulatory requirements may operate at more conservative cycle levels to reduce risk.
Balancing Efficiency and Risk
Increasing cycles can support water conservation efforts and reduce the need for fresh intake water. However, increasing cycles without proper control can accelerate mineral buildup and negatively impact system reliability.
A well-managed system identifies optimal cycle levels that:
- Improve water efficiency
- Maintain stable chemistry
- Protect equipment from damage
By carefully selecting and maintaining the right target cycles, operators can achieve both sustainability goals and consistent system performance.
Common Problems from Poor Cycle Control
When cycles of concentration are not properly managed, a range of operational problems can develop within a cooling tower system. These issues often result from excessive buildup of contaminants in the tower water, leading to reduced efficiency, equipment damage, and increased maintenance requirements.
Scale Formation
One of the most common issues is scale formation, which occurs when dissolved minerals exceed their solubility limits and begin forming scale on system surfaces. Compounds such as calcium carbonate can create hard scale deposits on heat transfer areas, restricting flow and reducing efficiency.
Corrosion
Unbalanced water chemistry can accelerate corrosion rates, damaging metal components throughout the system. Over time, corrosion weakens equipment, increases the risk of leaks, and shortens the lifespan of critical assets. Monitoring tools like corrosion coupons help assess the severity of this issue.
Fouling and Suspended Solids
The accumulation of suspended solids and debris can lead to fouling, which clogs piping and reduces system effectiveness. This often includes particles introduced through the water supply, as well as internal byproducts from corrosion and scaling.
Biological Growth
Elevated nutrient levels and warmer water conditions can promote bacterial growth, especially when organic matter is present. Biological fouling can form biofilms that further reduce system performance and create additional maintenance challenges.
If left unchecked, these problems can significantly impact system reliability, increase downtime, and drive up operating costs. Proper cycle control is essential to maintaining stable water chemistry and protecting long-term performance.
How Water Treatment Programs Help Maintain Proper Cycles
Maintaining stable and efficient cycles of concentration requires more than simple monitoring. Effective water treatment programs combine chemical control, system monitoring, and mechanical solutions to keep the cooling tower operating within safe limits while optimizing performance.
A well-designed approach typically includes several key components:
- Monitoring and testing: Regular testing of system parameters, such as conductivity and chemical levels, helps track changes in water chemistry and ensures the system stays within the desired operating range.
- Chemical water treatment and feed control: Carefully selected cooling tower treatment chemicals are introduced through controlled chemical feed systems to manage scaling, corrosion, and biological activity. These programs are tailored to the specific conditions of the system.
- Filtration options: Mechanical filtration helps remove suspended solids and other contaminants that contribute to fouling and reduced efficiency. This supports cooling tower cleaner system operation and more stable water conditions.
- Data-driven adjustments: Modern systems use real-time data and trend analysis to make proactive adjustments. This allows operators to respond to changes before they impact performance or lead to excessive buildup.
By integrating these elements, water treatment programs help maintain consistent chemistry, reduce unnecessary chemical use, and support reliable system operation. The result is improved efficiency, better protection of equipment, and more controlled long-term performance.
Clearwater’s Cooling Tower Water Treatment Services
Managing cycles of concentration effectively requires more than routine adjustments. It demands a coordinated program that addresses water quality, system design, and ongoing operational control. Clearwater Industries supports this need by delivering integrated cooling tower solutions focused on protecting equipment, improving efficiency, and maintaining compliance.
For facilities such as schools, high-rise buildings, and commercial properties, Clearwater approaches each cooling system with a structured process that includes system evaluation, custom program design, testing, and continuous monitoring. This ensures that the water treatment system is aligned with real operating conditions, including seasonal changes and variations in makeup water quality.
Key services related to cooling tower performance and cycle control include:
- Cooling tower treatment programs
Targeted control of scale, corrosion, and biological activity using tailored chemistry and automated feed systems to stabilize cooling tower cycles - Water testing and analysis
Ongoing monitoring of water quality, including dissolved solids, microbial activity, and system chemistry to support data-driven adjustments - Filtration and solids removal
Advanced filtration options that reduce suspended solids and fouling, helping maintain cleaner system water and more stable concentration levels - Reverse osmosis and pretreatment solutions
Improvement of incoming water quality to allow safer operation at higher cycles and better long-term system performance - Water management planning and optimization
Strategic programs designed to improve water efficiency, reduce water usage, and control tower blowdown while maintaining system reliability
Clearwater’s programs are built around continuous improvement, operator support, and rapid response when issues arise. This helps facilities maintain consistent performance while minimizing risk and operational disruption.
If your facility is looking to improve cooling tower efficiency, reduce water consumption, or better control cycles of concentration, contact Clearwater Industries to discuss a customized water treatment program tailored to your system.
Frequently Asked Questions (FAQs)
Higher cycles can improve thermal efficiency by reducing scaling, which helps systems save energy. However, excessive concentration can reduce performance and increase overall energy consumption if not properly controlled.
Makeup water quality directly determines how quickly dissolved solids accumulate in the system. Poor make up water quality or inconsistent fresh makeup water supply can limit how high cycles can safely operate.
Yes, reverse osmosis improves incoming fresh water quality by removing dissolved solids. This allows systems to operate at higher cycles with reduced risk of scaling and fouling.
Water quality is monitored through routine testing of parameters like conductivity, pH, and system water chemistry during cooling tower operation. Continuous monitoring systems can also provide real-time data for better control.
