DAF Dissolved Air Flotation Systems Explained
Industrial facilities often generate wastewater containing oils, grease, suspended solids, food particles, biological material, and other contaminants that do not settle easily through gravity alone. When these materials remain in the wastewater stream, they can increase treatment demands, affect downstream equipment, and make discharge requirements more difficult to manage.
A DAF dissolved air flotation system is designed to separate these light or slow-settling contaminants by using fine air bubbles that attach to suspended particles and carry them to the water surface for removal. Commonly used in industrial wastewater treatment, dissolved air flotation can improve solids removal, protect later treatment stages, and support more consistent water quality. This article explains how the process works, what contaminants it can address, and the operating factors that influence system performance.
Key Takeaways
- A DAF system uses fine air bubbles to lift suspended solids, oils, grease, and other floatable contaminants to the surface for removal.
- The process is especially effective for light particles that do not settle efficiently through gravity clarification.
- Chemical conditioning with coagulants or polymers can improve solids removal and clarified water quality.
- Stable air supply, recycle pressure, skimmer performance, and sludge handling are essential to treatment efficiency.
- Dissolved air flotation often serves as pretreatment before biological treatment, filtration, reverse osmosis, or discharge.
What Is a DAF Dissolved Air Flotation System?
A DAF dissolved air flotation system is a wastewater treatment technology that separates suspended matter from water by floating it to the surface rather than allowing it to settle. The dissolved air flotation DAF process is especially useful for oils, grease, biological solids, and colloidal particles that are too light or slow-settling for conventional clarification.
Inside the flotation tank, fine bubbles attach to suspended particles and increase their buoyancy. The resulting solids layer rises to the top, where it can be removed by a skimming mechanism, while clarified water exits the unit for discharge or further treatment. This approach provides efficient solid liquid separation within a relatively compact water treatment process.
| Treatment Method | Separation Principle | Best Suited For |
|---|---|---|
| Dissolved air flotation | Floats contaminants to the surface | Oils, grease, biological solids, and light suspended particles |
| Gravity clarification | Settles contaminants to the bottom | Dense and readily settleable solids |

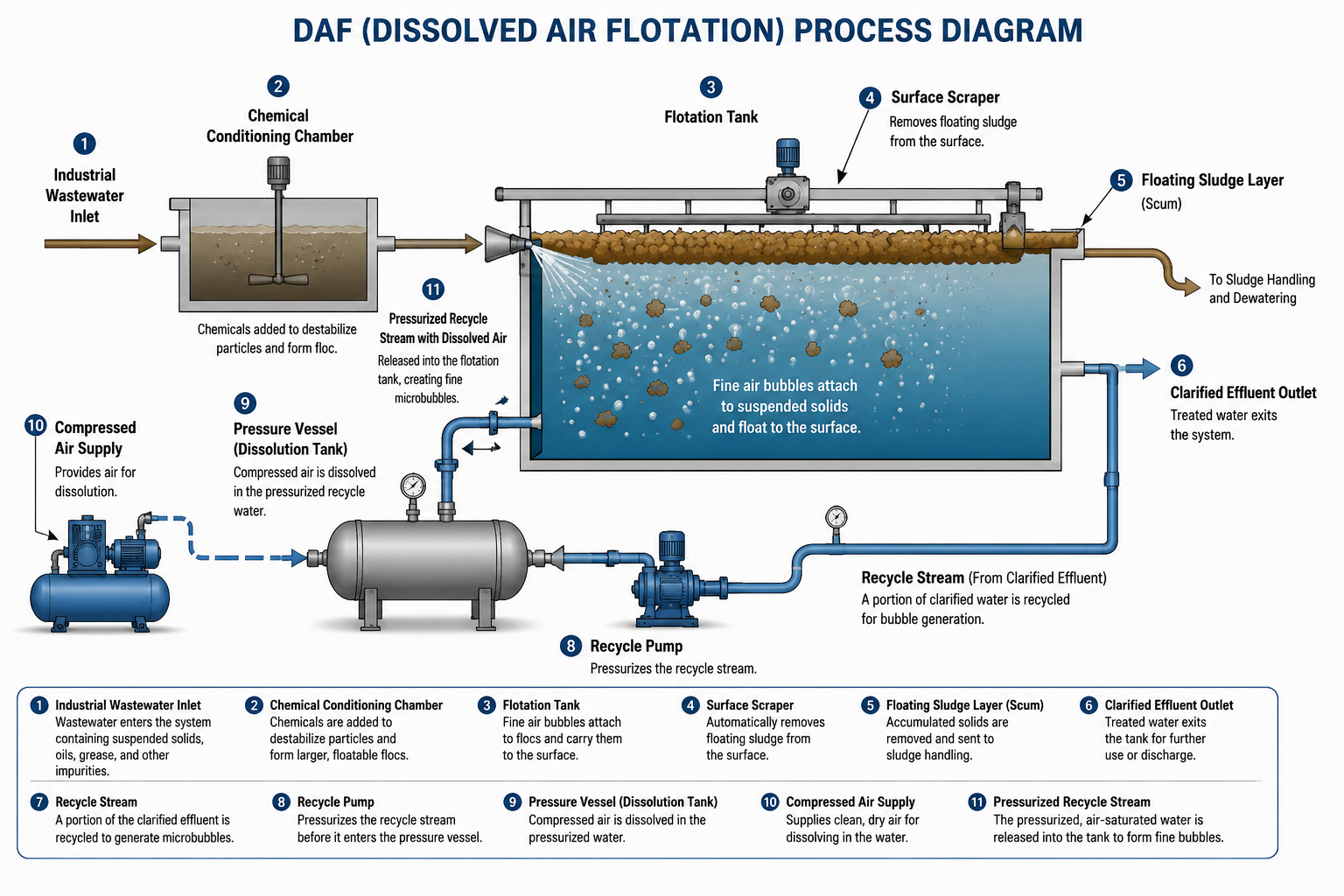

How the DAF Process Works
1. Wastewater Enters the Flotation Tank
The DAF process begins when an industrial wastewater stream enters the flotation tank. Depending on the wastewater characteristics, coagulants or polymers may be added first to destabilize colloidal particles and form larger flocs that are easier to separate.
2. Air Is Dissolved Under Pressure
A portion of the clarified effluent is recycled through a pressure vessel, where compressed air is introduced into the pressurized water. This step allows a greater amount of air to dissolve into the recycle stream than would occur under normal atmospheric pressure.
3. Pressure Is Released
The pressurized recycle stream is then returned to the flotation tank. As the water pressure drops back to atmospheric pressure, the released air forms tiny bubbles throughout the tank.
4. Fine Bubbles Attach to Suspended Particles
The fine bubbles attach to suspended solids, oils, grease, and chemically formed flocs. As more bubbles collect on the particles, their combined density becomes lower than the surrounding water, causing them to rise toward the surface.
5. Floating Sludge Is Removed
The floated material forms a concentrated sludge layer at the top of the tank. A surface scraper or skimming device removes this layer and directs it to a separate sludge handling area for dewatering, treatment, or proper disposal.
6. Clarified Water Leaves the Unit
Clarified water exits the DAF unit from below the floating solids layer. Depending on the facility’s wastewater treatment process, it may be discharged, sent to biological treatment, filtered, or directed to another stage for further treatment.
What Contaminants Can a DAF System Remove?
A DAF system is most effective for contaminants that are suspended, floatable, or capable of being converted into larger flocs through chemical conditioning. Its performance depends on the composition of the industrial wastewater, particle size, pH, chemical dosage, and hydraulic loading.
Common contaminants removed through dissolved air flotation include:
- Total Suspended Solids (TSS)
- Fats, oils, and grease
- Biological solids
- Food particles and organic matter
- Algae and light suspended material
- Colloidal particles after coagulation
- Certain precipitated heavy metals
- Materials contributing to Biochemical Oxygen Demand (BOD) and Chemical Oxygen Demand (COD)
A properly operated DAF unit can achieve high removal efficiency for suspended particles and help improve effluent water quality. However, it does not remove all dissolved contaminants, salts, or very small molecules, so biological treatment, filtration, activated carbon, or reverse osmosis may still be required.
Chemical Conditioning and DAF Performance
Very small particles and stable colloidal particles may not attach efficiently to air bubbles on their own. Chemical conditioning helps destabilize these materials and form larger flocs that can float more readily, improving separation efficiency and clarified effluent quality.
Common Chemical Conditioning Steps
- Adjusting pH to support effective coagulation
- Adding a coagulant such as ferric chloride or aluminum sulfate
- Introducing a flocculant polymer to build stronger flocs
- Providing rapid mixing for even chemical distribution
- Allowing controlled floc formation before flotation
- Using jar testing to refine chemical dosage
Correct chemical dosage is essential. Underdosing may leave suspended matter causing solids carryover, while overdosing can increase the sludge produced, raise operational costs, and reduce treatment efficiency. High density solids may also require additional settling or another treatment process because they are less suited to flotation.
Common Commercial and Industrial Applications
Dissolved air flotation is used across facilities that generate industrial wastewater streams containing oils, grease, fibers, suspended particles, biological solids, or high organic loading. Its role varies by industry, but the goal is generally to clarify wastewater before discharge, biological treatment, filtration, or another treatment stage.
| Facility Type | Common Wastewater Concerns | Role of DAF |
|---|---|---|
| Food processing plants | Fats, oils, grease, food particles, and high organic loading | Removes floatable solids and reduces loading on downstream treatment |
| Dairy plants | Milk solids, proteins, fats, and variable pH | Separates suspended matter and helps stabilize the wastewater treatment process |
| Paper mills | Fibers, fillers, and light suspended solids | Recovers or removes solids from the wastewater stream |
| Industrial laundries | Oils, lint, surfactants, and suspended particles | Improves pretreatment before discharge or further treatment |
| Metalworking facilities | Oils, emulsions, and precipitated heavy metals | Supports solids removal after chemical conditioning |
| Oil refineries | Free and emulsified oils, suspended matter, and process residues | Separates oil-bearing solids before additional wastewater treatment |
| Municipal wastewater treatment facilities | Algae, biological floc, and light solids | Provides clarification where gravity settling is less effective |
| Drinking water treatment facilities | Algae and low-density suspended particles | Supports clarification in selected source-water conditions |
For food processing and dairy plant operations in particular, a DAF system can help reduce Total Suspended Solids, Biochemical Oxygen Demand, and Chemical Oxygen Demand before the wastewater moves to biological treatment or discharge.
DAF System Benefits and Operating Considerations
A properly designed and maintained air flotation system can improve solids removal, stabilize clarified effluent quality, and reduce the burden on downstream treatment. However, actual performance depends on influent variability, chemical control, equipment condition, and operator oversight.
| Potential Benefits | Operating Considerations |
|---|---|
| Efficient removal of light suspended solids and oils | Recycle pressure and flow must remain stable |
| Compact footprint compared with some clarification systems | The air compressor and air supply require routine inspection |
| Reduced solids carryover to downstream equipment | Coagulant and polymer dosage must be adjusted to changing conditions |
| Improved protection for filters, membranes, and biological treatment | The surface scraper and skimming device must operate consistently |
| More reliable clarified water quality | Sludge removal, handling, and proper disposal must be planned |
| Potential reduction in downstream loading | Energy, chemical use, labor, and maintenance affect operational costs |
The main advantages of DAF are its high separation efficiency for low-density solids and its ability to handle wastewater streams that do not respond well to gravity settling. Treatment efficiency can decline when flow rates fluctuate, bubbles are too large, chemicals are poorly dosed, or sludge accumulates in the float tank.
Supporting Downstream Treatment and Compliance
A DAF dissolved air flotation system is often installed as a pretreatment stage within a broader wastewater treatment system. By removing suspended solids, oils, grease, and other floatable material before further treatment, the process can help protect biological treatment units, media filters, membrane systems, and reverse osmosis equipment from excessive loading and fouling.
DAF can also help facilities improve clarified water quality and manage pollutants before discharge, but it does not guarantee regulatory compliance on its own. Final effluent must still be evaluated against applicable environmental regulations, local sewer limits, permit conditions, and National Pollutant Discharge Elimination System (NPDES) requirements where relevant. Routine sampling, process monitoring, and documentation remain essential for confirming that the wastewater system is operating as intended.
How ClearWater Industries Supports Water Treatment Performance
A DAF dissolved air flotation system performs best when it is supported by accurate testing, suitable downstream filtration, and ongoing operational review. ClearWater Industries provides commercial and industrial facilities with water treatment support focused on system evaluation, performance monitoring, equipment protection, and long-term optimization.
Relevant services include:
- Commercial water testing to evaluate pH, dissolved solids, metals, turbidity, particle loading, and other water quality conditions
- Industrial filtration system solutions for removing remaining particulates and reducing solids loading after primary treatment
- Water treatment consulting services to assess treatment effectiveness, equipment condition, operating costs, and compliance needs
- Industrial reverse osmosis systems with customized pretreatment, monitoring, maintenance, and operator support
- Water management plans that address system performance, reuse opportunities, documentation, conservation, and long-term treatment strategy
ClearWater’s consultative approach helps facility managers evaluate how individual treatment stages work together rather than treating each piece of equipment as an isolated solution. Contact ClearWater Industries to discuss water testing, filtration, pretreatment, or system optimization needs for your facility
Frequently Asked Questions
Dissolved air flotation lifts suspended particles to the surface with air bubbles, while gravity clarification allows high density solids to settle to the bottom. Air flotation is generally better suited to oils, grease, biological floc, and other light suspended matter.
A DAF unit is designed primarily for removing suspended solids, oils, grease, and chemically conditioned particles rather than dissolved salts. Additional treatment, such as biological processing, filtration, or reverse osmosis, may be required before reuse or discharge.
Coagulants such as ferric chloride or aluminum sulfate help destabilize colloidal particles and form larger flocs that attach more effectively to fine bubbles. Proper chemical control can improve separation efficiency, reduce solids carryover, and produce more consistent clarified effluent.
The sludge produced is collected by a surface scraper or skimming device and transferred to a separate handling system. It may require thickening, dewatering, testing, and proper disposal based on its composition and applicable environmental regulations.
