Hybrid Cooling Systems: Combining Wet and Dry Cooling Technologies
As demand for efficient temperature control continues to grow across commercial and industrial environments, many facilities are rethinking how they manage heat in modern infrastructure. Traditional cooling approaches often rely entirely on either water-based or air-based operation, but today’s performance and sustainability expectations require more flexibility.
A hybrid cooling system offers a powerful solution by combining the strengths of wet and dry cooling technologies into a single integrated design. This hybrid cooling approach allows facilities to balance evaporative cooling performance during peak heat conditions with air-based operation when water conservation or seasonal conditions make it more practical.
By improving energy efficiency, reducing water consumption, and supporting stable operation across changing climates, hybrid cooling is becoming an increasingly important cooling system strategy. From industrial plants to advanced building systems, these technologies are designed to optimize heat rejection while maintaining reliable control of operating temperature.
What Is a Hybrid Cooling System?
A hybrid cooling system is an advanced cooling technology that integrates both wet and dry cooling methods into one coordinated process. Rather than relying on a single mode of operation, hybrid systems are designed to switch between evaporative cooling and dry cooling depending on environmental conditions, cooling demand, and efficiency goals.
In wet mode, the system uses water evaporation to enhance heat rejection, which can be especially effective during periods of high outdoor temperature. In dry mode, the system operates more like an air-cooled unit, using airflow and heat exchange surfaces to remove heat without significant water use. This hybrid approach provides operational flexibility while supporting sustainability and performance.
Hybrid cooling is particularly valuable in applications where facilities must manage variable cooling loads, seasonal temperature swings, or water conservation requirements. By combining the benefits of both approaches, a hybrid cooling system can achieve optimal efficiency across a wider range of conditions than traditional cooling solutions.

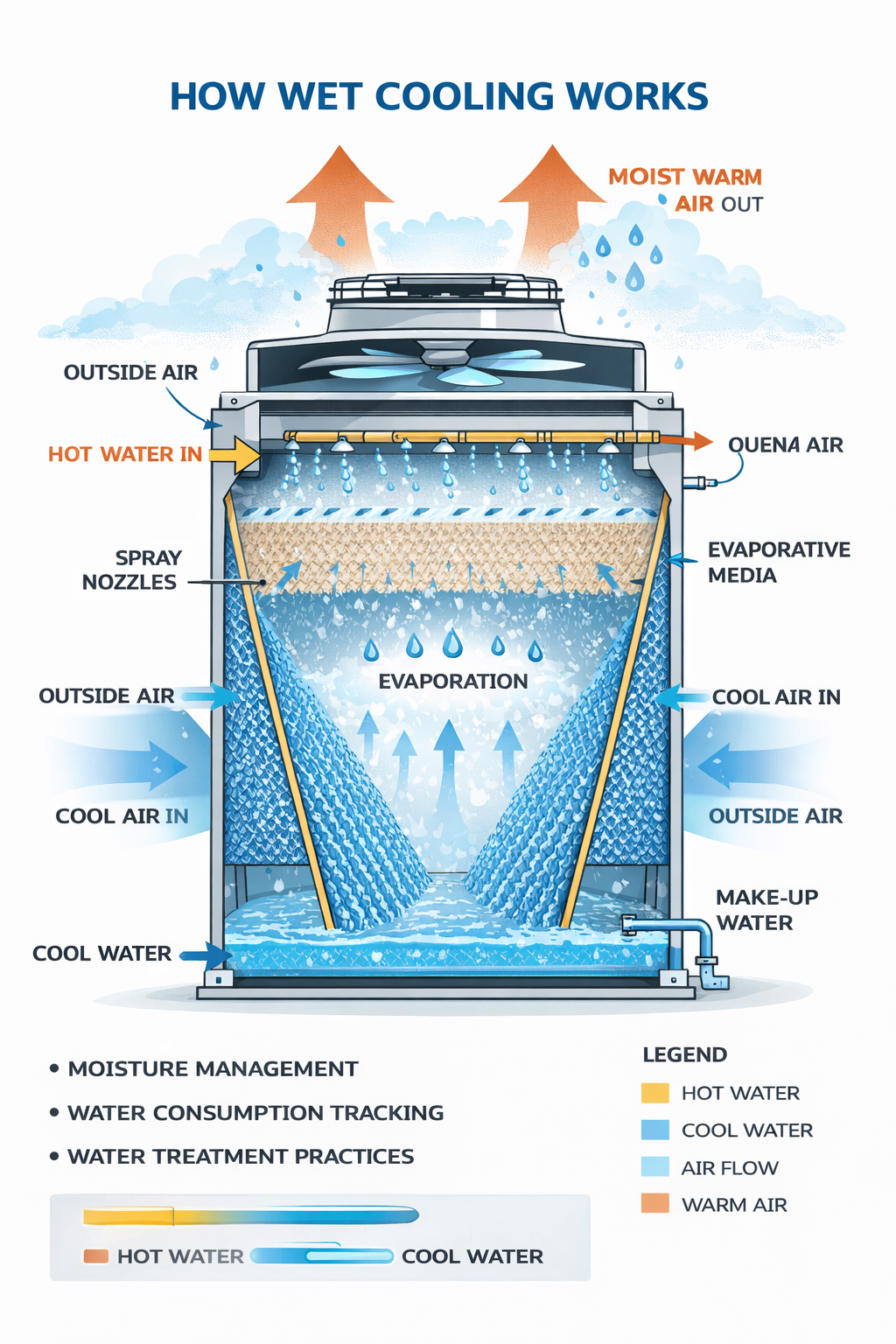

How Wet Cooling Works: Evaporative Technology Basics
Wet cooling relies on evaporative cooling technology to remove heat efficiently, especially when outdoor conditions are warm and cooling demand is high. In this mode, water comes into direct contact with a stream of air, allowing a portion of the water to evaporate. That phase change absorbs heat generated by the system, which lowers the circulating water temperature and improves overall heat rejection.
This is why evaporative cooling is widely used in high-capacity cooling applications. It can remove heat quickly and maintain stable performance during peak summer conditions, when facilities often need the most cooling. Because the process depends on evaporation, however, it requires ongoing attention to water consumption, water quality, and system cleanliness.
Key operational considerations for wet cooling include:
- Moisture management, since evaporation increases humidity in the exhaust air
- Water consumption tracking, because evaporative performance uses make-up water
- Water treatment practices, which help reduce scale, corrosion, and biological risks
When maintained properly, wet cooling provides high-capacity cooling performance that supports reliable operation during periods of elevated heat.
How Dry Cooling Works: Air-Based Heat Transfer
Dry cooling operates without evaporation, using air cooling principles to remove heat through sensible heat transfer. In this mode, the system relies on outside air moving across heat exchange surfaces to cool the circulating fluid. Instead of using water loss through evaporation, dry cooling uses airflow, fans, and extended surface coils to transfer heat into the surrounding air.
As the cooling process occurs, warm air enters the unit and passes over the heat exchanger. Heat is absorbed from the fluid, and the air exits as hot air. This method allows the system to maintain cooling performance while significantly reducing water consumption, making it especially valuable during colder months or in regions where water conservation is a priority.
Dry mode is often most effective when ambient temperatures are low enough to support efficient cooling using cold air. Facilities can take advantage of seasonal conditions to reduce reliance on evaporative operation and improve overall efficiency.
Key features of dry cooling include:
- Reduced moisture discharge compared with wet operation
- Lower chemical and water treatment demands
- Stable operation during freezing conditions
By integrating dry cooling into hybrid systems, facilities gain flexibility and more sustainable cooling solutions year-round.
Why Combine Both? Key Benefits of Hybrid Cooling Solutions
The primary advantage of hybrid cooling is its ability to deliver efficient performance across a wide range of operating conditions. By combining wet and dry cooling into a single design, hybrid cooling solutions allow facilities to optimize energy use, reduce resource strain, and maintain stable temperature control throughout the year.
A hybrid cooling system can operate in evaporative mode during peak heat conditions, then shift into dry operation when outside temperatures allow. This flexibility supports optimal efficiency while helping facilities reduce energy consumption, lower maintenance costs, and minimize environmental impact.
Hybrid systems are increasingly viewed as an environmentally friendly option because they balance performance with responsible use of water and energy. Compared with traditional cooling approaches, they often require less energy to achieve the same heat rejection outcomes, especially when seasonal conditions are favorable.
Key Advantages of Hybrid Cooling
| Benefit Area | Wet Cooling Strength | Dry Cooling Strength | Hybrid Advantage |
|---|---|---|---|
| Energy efficiency | High performance in extreme heat | Efficient in cooler weather | Uses the most efficient mode for conditions |
| Water consumption | Requires evaporative water use | Minimal water demand | Reduces total annual water usage |
| Energy consumption | Higher during peak load | Lower in dry mode | Achieves less energy use overall |
| Maintenance costs | More water treatment needs | Less chemical demand | Balanced system upkeep and reliability |
| Environmental impact | Higher water dependency | Lower resource use | Supports sustainability goals |
Additional Benefits
- Improved system performance under variable cooling demand
- Reduced strain on natural resources during dry operation
- Greater operational control and long-term efficiency improvements
For facilities seeking efficient cooling with reduced resource impact, hybrid cooling provides a practical and future-ready solution.
Hybrid Cooling in Industrial and Data Center Applications
Hybrid cooling is increasingly adopted in industrial applications and mission-critical facilities because it can manage high heat output while improving efficiency and sustainability. Many modern operations generate heat continuously, and the amount of heat generated can rise sharply when equipment runs at full capacity. In environments with demanding workloads, a flexible cooling approach helps maintain reliability without driving unnecessary resource use.
One of the clearest examples is data center cooling. As data centers continue to expand to support cloud services, digital infrastructure, and machine learning, they must remove heat from dense IT environments that produce significant amounts of heat. Servers generate heat around the clock, and as compute intensity grows, they generate more heat per rack. That increases the cooling load and pushes facilities to evaluate cooling solutions that can deliver stable performance with less energy.
Hybrid systems also complement newer liquid cooling strategies. Many facilities are deploying liquid cooling systems, including direct-to-chip liquid cooling and immersion cooling, to manage high heat generated by modern processors. These liquid cooling systems transfer heat efficiently from components, but they still rely on a broader cooling system to reject that heat outdoors. Hybrid cooling provides that final-stage heat rejection, combining air cooling and evaporative cooling depending on conditions and efficiency goals.
In practice, hybrid cooling supports efficient cooling in both high-density data centers and heavy industrial environments where consistent heat removal is essential.
Key Components and Heat Exchange Process
A hybrid cooling system depends on several integrated components working together to remove heat efficiently and maintain the desired temperature across changing operating conditions. At the core of the process is heat transfer, where the system transfers heat away from equipment and releases it through controlled heat rejection.
Below are the primary components that enable hybrid cooling performance.
Heat Exchanger
The heat exchanger is the central unit where thermal energy is removed from the circulating fluid. As heat generated by industrial or data center equipment enters the system, the heat exchanger transfers heat from the liquid loop into either the air stream or the evaporative section, depending on operating mode.
This step is essential for managing more heat as cooling demands rise.
Liquid Cooling Loop and Fluid Circuit
Many hybrid systems rely on liquid cooling to absorb heat at the source. The fluid circulating through the system captures heat from equipment and transports it to the cooling unit for rejection.
This is especially important in liquid cooling systems supporting high-density computing, where liquid removes heat more efficiently than air alone.
Airflow System and Fans
In dry cooling mode, airflow becomes the primary cooling method. Fans move outside air across coil surfaces, helping regulate temperature and maintain efficient operation.
Proper airflow design improves performance and reduces energy use during cooler seasons.
Wet Cooling Section
During peak heat conditions, the wet portion of the system enhances cooling through evaporation. This component supports efficient cooling when air temperatures alone cannot achieve the required heat rejection.
Wet operation can help the system maintain the desired temperature even under heavy load.
Controls, Power, and System Optimization
Hybrid cooling systems use automated controls to switch between modes and optimize efficiency. By adjusting power use, fan speed, and operating mode, the system can achieve optimal efficiency while reducing overall energy consumption.
This ability to optimize performance is one of the key advantages of hybrid cooling technology.
Water Treatment and Performance Support from ClearWater Industries
Even the best hybrid cooling design depends on clean heat transfer surfaces and stable water chemistry to perform as intended. Because a hybrid cooling system operates across both wet and dry modes, facilities often see fluctuating operating conditions that can accelerate scale formation, deposit buildup, and biological growth during warm-weather operation. If not managed, these issues reduce heat rejection capability, increase energy consumption, and make it harder to maintain the desired temperature under peak load.
ClearWater Industries supports hybrid cooling and conventional cooling solutions with services that protect performance and strengthen compliance readiness.
Cooling Tower Cleaning and Disinfection
Cooling towers can collect scale, sludge, and biological growth quickly, especially during peak load. CWI provides professional cooling tower cleaning and disinfection designed to restore heat transfer efficiency and support Legionella risk control. Their process includes system assessment, initial disinfection, comprehensive physical cleaning, and final sanitization and restoration. CWI also supports verification through testing such as Total Heterotrophic Plate Count analysis, DNA-based biological testing, deposit analysis, and water quality monitoring.
Cooling Tower Compliance Services
For facilities where documentation and public health protection are critical, CWI offers cooling tower compliance services built around five pillars: regular inspections and documentation, water quality monitoring and verification, biological contamination prevention, chemical treatment program management, and emergency response protocol development. Programs can include ongoing microbiological testing, performance tracking, environmental impact assessment, and support for corrective actions when concerns arise.
Cooling Tower Water Treatment Services
CWI’s cooling tower water treatment programs target three core threats that directly affect efficient cooling: corrosion, scale, and biological growth. These programs emphasize custom treatment based on system evaluation and water testing, scheduled preventive visits, detailed service reports and trending analysis, and advanced monitoring and control systems. A key goal is maintaining clean heat transfer surfaces so the cooling system can operate at higher efficiency with less energy, while also reducing excess water consumption tied to avoidable blowdown and instability.
Water Management Plans
Because cooling tower operation is often a major source of water consumption, CWI also builds water management plans that focus on usage analysis, system optimization, monitoring protocols, and documentation. Plans can include strategies to optimize cycles of concentration, reduce blowdown waste, and prevent scale and corrosion, all of which support stable performance during wet operation and seasonal transitions.
If you want to improve cooling performance, reduce risk, and strengthen compliance readiness, contact ClearWater Industries to schedule an assessment and align your program around cleaning, treatment, monitoring, and documentation.
