Cooling Tower Makeup Water Quality Requirements
Cooling towers play a critical role in commercial and industrial cooling systems, helping regulate temperature by removing heat through evaporation. As water evaporates during operation, it must be continuously replaced to maintain system balance. This replacement water, known as makeup water, directly influences the performance, reliability, and longevity of the entire system.
The makeup water for cooling tower applications is not just a simple refill. Its composition determines how effectively the system can operate without issues such as scaling, corrosion, or biological growth. Poor water quality can lead to fouling of equipment, reduced efficiency, and increased maintenance requirements.
For facilities such as high-rise buildings, schools, and commercial properties, maintaining proper makeup water for cooling tower systems is essential for both operational efficiency and safety. Understanding the key requirements of makeup water is the first step toward effective water management and long-term system performance.
What Is Makeup Water and Why It Matters
In cooling tower systems, makeup water refers to the incoming fresh water used to replace losses that occur during normal operation. As the system runs, water evaporates to remove heat, leaving behind dissolved impurities. To maintain proper water levels and system stability, additional makeup water for cooling tower operation is continuously introduced.
The quality and consistency of this incoming water are critical because it becomes part of the circulating cooling water and directly affects system chemistry. Different water sources, such as municipal supply, wells, or surface source water, can vary significantly in mineral content and overall quality. These variations influence how the system must be managed and treated.
Makeup water is required to replace several types of losses:
- Evaporation, where water evaporates during heat rejection
- Drift, where small droplets escape the tower
- Cooling tower blowdown, which removes excess dissolved solids from the system
Because these losses are continuous, the quality of cooling tower makeup water must be carefully controlled to prevent long-term operational issues and ensure consistent system performance.
Key Makeup Water Quality Parameters
The effectiveness of any makeup water for cooling tower application depends on the chemical and physical characteristics of the incoming water. Understanding key aspects of makeup water quality helps operators prevent scaling, corrosion, and fouling within cooling towers.
Below are the primary parameters that must be monitored:
| Parameter | Why It Matters | Potential Issues |
|---|---|---|
| Hardness (Calcium, Magnesium) | Indicates presence of scale forming ions such as calcium and magnesium | Scale formation on surfaces, reduced efficiency |
| Dissolved Solids | Represents total dissolved solids and overall mineral content | Increased fouling, limits on cycles of concentration |
| Alkalinity | Affects buffering capacity and system stability | Scaling or corrosion depending on balance |
| Dissolved Oxygen | Contributes to oxidation reactions | Accelerated corrosion of metal components |
| Conductivity | Measures ionic content and overall concentration of water | Helps control blowdown and system balance |
| Suspended Solids | Includes particles and debris in water | Fouling, sludge buildup, reduced flow efficiency |
High levels of minerals, suspended solids, and dissolved gases can create a high level of system stress if not properly managed. For example, excess hardness from hard water promotes deposits, while elevated dissolved oxygen increases corrosion risk.
Monitoring these parameters allows operators to adjust treatment strategies, maintain proper system control, and avoid performance issues that can impact both reliability and long-term operating costs.

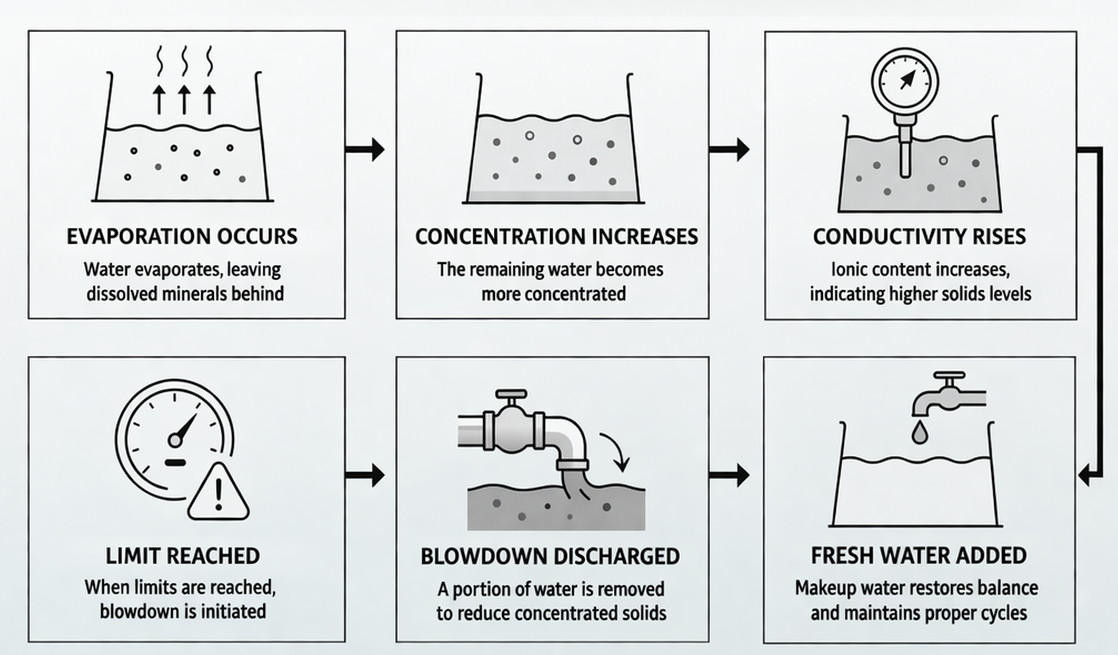

Cycles of Concentration and Blowdown Control
In any cooling tower systems, managing cycles of concentration is essential to maintaining proper water chemistry and preventing excessive buildup of impurities. As evaporation occurs, pure water leaves the system while dissolved solids remain behind, causing the remaining water to become more concentrated over time.
This process increases the overall solids level, which must be controlled to avoid scaling, corrosion, and fouling. The higher the concentration, the greater the risk of operational problems.
The blowdown rate is carefully adjusted to maintain acceptable concentration levels while minimizing water waste. Effective control of this process allows systems to operate at optimal cycles, improving efficiency without risking damage.
Balancing cycles of concentration with proper tower blowdown practices is a key part of any water management strategy, ensuring stable operation and long-term system performance.
Treatment and Pretreatment Options
To maintain proper makeup water quality, most facilities rely on a combination of water treatment strategies and pretreatment technologies. These approaches are designed to control scaling, corrosion, and fouling while optimizing system performance in cooling tower systems.
Chemical Treatment
A well-designed chemical treatment program is essential for protecting system components and maintaining stability. Common treatment chemicals include:
- Scale inhibitors to prevent buildup from hardness and scale forming ions
- Corrosion inhibitors to protect metal surfaces from degradation
- Biocides to control biological growth in cooling systems
These chemicals are carefully selected and adjusted based on incoming makeup water conditions and system demands.
Filtration Systems
Filtration plays a key role in removing suspended solids that can accumulate in the system. Side-stream filtration systems help:
- Reduce fouling and sludge buildup
- Improve water clarity and flow
- Protect downstream equipment
This is particularly important when raw water sources contain high particulate levels.
Softening and Reverse Osmosis
For systems dealing with hard water, pretreatment is often necessary. Options include:
- Softened water to reduce hardness caused by calcium and magnesium
- Softened water makeup to minimize scaling potential
- Reverse osmosis systems to remove a wide range of dissolved minerals and impurities
These methods improve control over dissolved solids and extend equipment life.
pH Control and Monitoring
Maintaining proper pH control is critical for balancing scaling and corrosion risks. Continuous monitoring allows operators to:
- Adjust treatment programs in real time
- Respond to sudden changes in water chemistry
- Maintain stable operating conditions
A comprehensive water treatment system combines these approaches to ensure reliable operation, improved efficiency, and reduced long-term maintenance requirements.
Operational Considerations for Commercial Facilities
Managing makeup water for cooling tower applications in commercial environments requires attention to changing conditions, system demands, and water variability. Facilities such as high-rise buildings, schools, and large commercial properties often operate complex cooling tower systems that must remain stable despite external fluctuations.
One of the most important factors is the variability of incoming raw water. Different water sources can introduce changes in hardness, alkalinity, and contaminant levels, especially when switching between supply sources or during seasonal transitions. In regions with hard water, elevated mineral content increases the risk of scaling and requires more active management.
Operators must also be prepared for sudden changes in system conditions, including shifts in load, temperature, and flow rates. These changes can disrupt chemical balance and impact overall system performance if not properly addressed.
Key operational considerations include:
- Monitoring incoming water quality and system response
- Adjusting treatment programs based on seasonal or source changes
- Maintaining consistent flow and distribution within tower systems
- Identifying and addressing issues before they impact performance
Proactive management of these variables ensures that cooling tower systems continue to operate efficiently, even under changing conditions.
Clearwater’s Approach to Cooling Tower Water Management
Effective management of makeup water for cooling tower applications requires more than routine maintenance. It involves a comprehensive approach that combines water treatment, system monitoring, and operational expertise. Clearwater Industries focuses on helping facilities maintain reliable cooling systems through tailored programs that address both performance and compliance.
Rather than applying a one-size-fits-all solution, each program is developed based on system design, incoming water conditions, and operational goals. This ensures that treatment strategies remain effective even as conditions change.
Clearwater’s approach includes:
- Customized water treatment programs such as commercial water testing designed for specific systems and water quality conditions
- Ongoing monitoring and control of key parameters such as conductivity, pH, and solids levels
- Integration of appropriate treatment methods, including industrial filtration solutions, chemical programs and pretreatment solutions
By combining technical expertise with a consultative approach, Clearwater helps facilities maintain system performance, reduce risk, and improve long-term reliability.
Learn more about our cooling tower water treatment services. For other inquiries, contact our team.
Frequently Asked Questions (FAQs)
Most cooling towers use fresh water because it contains fewer dissolved salts and is easier to treat. Seawater can be used in specialized systems, but it requires advanced treatment due to high salinity and corrosion risk.
When the solids level becomes too high, water becomes overly concentrated, increasing the risk of scaling and fouling. This is typically managed through blowdown, which removes excess solids and restores balance.
Cooling tower blowdown is usually discharged to a sewer system, following local environmental regulations such as NPDES guidelines. Proper disposal ensures that treatment chemicals and contaminants do not negatively impact the environment.
Cooling water is exposed to the atmosphere and continuously cycles through the system, making it more prone to contamination. In contrast, boiler water operates in a closed environment and requires stricter purity standards to prevent scaling and corrosion at high temperatures.
