Effective Mixed Bed Resin Regeneration Techniques for Optimal Purity

High purity and ultra pure water are essential in industries and institutional facilities where even trace dissolved ions can disrupt processes or damage equipment. From boiler feedwater systems in commercial buildings to laboratories and electronics manufacturing, maintaining consistent water quality requires advanced water treatment technology. Among the most effective polishing methods is ion exchange, particularly in mixed bed systems designed to remove the last remaining dissolved solids.

Mixed bed resin regeneration plays a critical role in sustaining the performance of these ion exchange systems. In a mixed bed unit, cation and anion exchange resins work together to capture positively charged ions and negatively charged ions, producing high quality water with extremely low conductivity. Over time, however, the resin bed becomes exhausted and must be restored through a carefully controlled regeneration cycle. Understanding how this process works helps facility managers and engineers protect system reliability, extend resin life, and maintain compliance with demanding water quality standards.

Understanding Mixed Bed Ion Exchange Systems

Ion exchange systems remove dissolved ions from water by exchanging them with hydrogen and hydroxide ions held on specialized ion exchange resins. In a mixed bed configuration, both cation and anion resins are combined within a single vessel, allowing the water to undergo multiple exchange reactions as it flows through the resin bed. This design produces higher purity than separate bed systems operated in sequence.

Inside mixed bed units, the cation resin and anion resin are intimately blended. The cation resin, often a strong acid cation resin, removes positively charged ions such as calcium, magnesium, and sodium. The anion resin, typically a strong base anion or weak base anion depending on the application, captures negatively charged ions such as chloride, sulfate, and silica. Together, these ion exchangers reduce dissolved solids to extremely low levels, delivering treated water suitable for demanding applications.

Key Components Inside a Mixed Bed Unit

• Cation resin bed: Contains strong acid cation resin beads that exchange hydrogen ions for positively charged ions in the water.
• Anion resin bed: Contains anion exchange resins, including strong base anion or SBA resins, that remove negatively charged ions.
• Single vessel design: Both resin types operate in the same unit, increasing polishing efficiency compared to separate beds.
• Resin type selection: The choice of resin type, including weak base anion or strong base anion, depends on raw water chemistry and required water quality.

By combining cation and anion exchange in the same manner within one bed resin mixture, mixed bed systems produce ultra pure water with very low residual dissolved ions, making them a critical final polishing step in many high purity water applications.

Why Mixed Bed Resin Regeneration Is Necessary

Over time, every resin bed reaches the end of its service cycle. As treated water flows through the system at a defined service flow rate, the ion exchange resins gradually become saturated with dissolved ions removed from the water. Once the exchange sites are fully occupied, the bed contains exhausted resin and can no longer maintain the desired water quality.

When this occurs, conductivity begins to rise and dissolved solids start to break through into the treated water stream. In applications such as boiler feedwater preparation or condensate polishing, even minor increases in ionic content can lead to corrosion, scaling, and reduced equipment efficiency. High flow rate conditions can accelerate this exhaustion, shortening the service cycle and increasing operational risk.

Mixed bed resin regeneration restores the resin’s exchange capacity by reversing the chemical loading that occurred during normal operation. Without timely regeneration, facilities may experience:

Common Signs of Exhausted Resin

• Rising conductivity in treated water
• Increased dissolved solids or silica breakthrough
• Shortened service cycle between regenerations
• Reduced regeneration efficiency over time
• Carryover of other contaminants into downstream systems

By carefully monitoring water flow, performance trends, and system indicators, operators can determine when mixed bed resin regeneration is required. Proper timing ensures stable water quality, protects critical equipment, and extends the operational life of the resin bed.

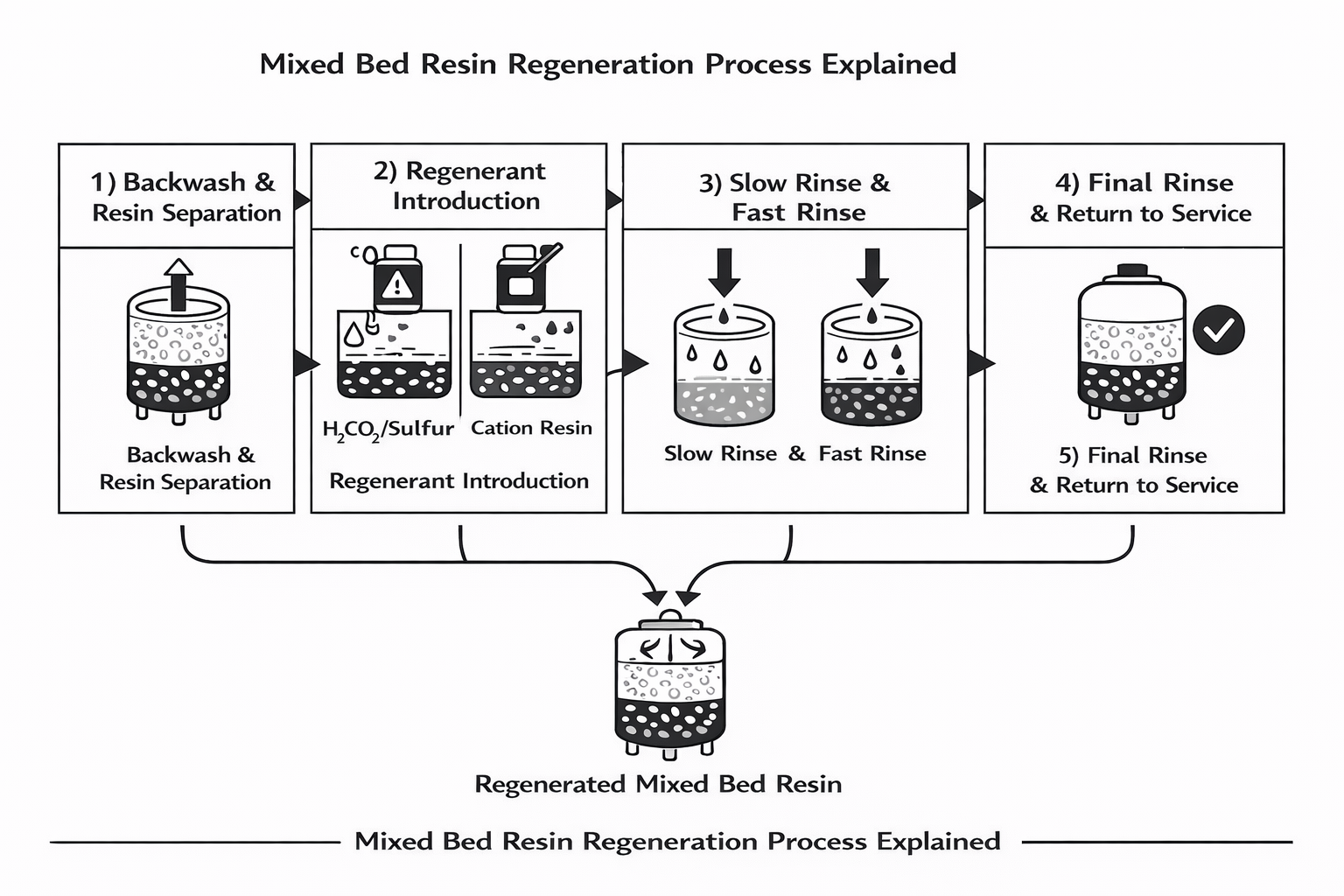

The Mixed Bed Resin Regeneration Process Explained

Mixed bed resin regeneration is a controlled regeneration process designed to restore exhausted resin to its original ionic form. Because both cation and anion resins are housed within a single vessel, the regeneration cycle requires separation, chemical treatment, rinsing, and remixing before the unit can return to service.

Step-by-Step Regeneration Cycle

1) Backwash and Resin Separation

The process begins with an upward flow of water through the resin bed. This expansion allows the heavier cation resin bed to settle toward the bottom while the lighter anion resin rises to the top. Proper flow rate and bed expansion are critical to achieving clean separation and preventing cross-contamination during regenerant introduction.

2) Regenerant Introduction

Once separated, each resin layer is treated with a specific regenerant solution.

• The cation resin is regenerated using an acid solution, typically sulfuric acid or hydrochloric acid. These strong acids displace positively charged ions and restore the resin to the hydrogen form.
• The anion resin is regenerated with sodium hydroxide, also known as caustic soda. This chemical restores the anion exchange resins to the hydroxide form.

The choice between sulfuric or hydrochloric acid depends on system design and scaling risk. For example, improper acid concentration can contribute to calcium sulfate precipitation. Careful control of regenerant level, dilution water, and regenerant introduction rate is essential for optimal regeneration efficiency.

3) Slow Rinse and Fast Rinse

After chemical contact, a slow rinse begins to displace residual chemicals while maintaining controlled water flow through the resin layers. This step is followed by a fast rinse, which flushes remaining regenerant to the drain. Proper rinse sequencing helps prevent chloride or caustic carryover into the treated water stream.

4) Resin Remixing

With both resins fully regenerated, the unit undergoes air mixing or hydraulic remixing. Controlled air mixing ensures the cation and anion resins blend evenly within the bed resin, restoring the mixed bed configuration for service operation.

5) Final Rinse and Return to Service

A final rinse ensures that residual acid, sodium hydroxide, and other chemicals are fully removed. Once rinse water quality meets specification, the system is returned to normal service flow rate. The regenerated resin is now ready to produce high quality water again.

Throughout this regeneration cycle, operators must monitor flow rate, chemical concentration, and rinse quality. Proper execution of mixed bed resin regeneration protects resin integrity, maximizes service life, and maintains stable performance across demanding water treatment technology applications.

Common Challenges: Fouling, Scaling, and Operational Concerns

Even when the regeneration cycle is properly executed, several operational factors can reduce performance over time. Mixed bed systems rely on consistent water flow, balanced chemistry, and clean influent conditions to maintain regeneration efficiency. When these conditions are compromised, resin performance declines and water quality can suffer.

Common Issues That Reduce Regeneration Efficiency

• Resin fouling: Accumulation of suspended solids, organics, or metal oxides on the resin surface can block active exchange sites. Resin fouling reduces capacity and increases pressure drop across the unit.
• Scaling within the resin bed: Inadequate acid control during regeneration may contribute to calcium sulfate formation, particularly when sulfuric acid is used. Scaling interferes with proper ion exchange and limits restored capacity.
• Chemical imbalance: Incorrect regenerant concentration or poor dilution water control may leave residual chemicals in the bed, increasing chloride or caustic carryover after return to service.
• Raw water variability: Changes in raw water chemistry, including higher dissolved solids or unexpected other contaminants, can shorten the service cycle and strain ion exchangers.
• Improper flow control: Excessive flow rate during service or regeneration can cause channeling within the resin bed, leading to uneven exhaustion and incomplete resin regeneration.

Working closely with a qualified resin manufacturer and monitoring system performance trends helps ensure regenerated resin consistently meets performance expectations. Attention to influent quality, chemical dosing, and operational parameters protects both the resin bed and the broader water treatment technology infrastructure.

Applications Requiring Mixed Bed Regeneration

Mixed bed systems are typically installed as a final polishing step where extremely low levels of dissolved ions are required. Because they combine cation and anion exchange within a single vessel, these systems are capable of producing demineralized water and ultra pure water suitable for sensitive equipment and processes.

Where Mixed Bed Polishing Is Commonly Used

• Boiler feedwater systems: High pressure boilers require high quality water to prevent scaling and corrosion. Mixed bed polishing protects steam systems and extends equipment life.
• Condensate polishing units: In steam-driven facilities, condensate polishing removes trace contaminants that re-enter the cycle, helping maintain stable chemistry.
• Laboratories and research facilities: Universities, healthcare institutions, and testing labs rely on ultrapure water to ensure accurate analytical results.
• Electronics manufacturing: Even minimal ionic contamination can disrupt microelectronic production, making reliable ion exchange systems essential.
• Commercial and institutional facilities: Buildings that require consistent, low-conductivity treated water for specialized equipment benefit from properly managed mixed bed resin regeneration programs.

In each of these applications, maintaining resin performance through timely mixed bed resin regeneration ensures consistent water quality and protects downstream systems from ionic contamination.

Also read our article on choosing the right DI water system for lab applications.

Clearwater Industries’ Approach to High-Purity Water Systems

In the Northeast, maintaining reliable high-purity water systems requires more than periodic chemical service. Facilities in Connecticut, Massachusetts, New York, and New Jersey face seasonal temperature shifts, variable raw water quality, and strict compliance expectations. Clearwater Industries supports commercial buildings, schools, healthcare facilities, and institutional properties with structured programs designed to protect water quality and system performance.

Rather than focusing solely on chemicals, CWI evaluates the entire unit, including service flow rate, system configuration, and overall mixed bed systems performance. Whether supporting boiler feedwater applications or specialty treated water systems, the goal is to ensure consistent operation and documented results.

Also read: How Industrial Boiler Systems in the Northeast Differ from Those in the West

How CWI Supports High-Purity Water Programs

• Performance monitoring of mixed bed systems and overall ion exchange systems
• Optimization of service cycle length to improve regeneration efficiency
• Oversight of resin regeneration timing and operational controls
• Inspection of resin condition to prevent premature exhaustion or fouling
• Documentation support for facilities requiring water quality verification

By taking a consultative approach, Clearwater Industries helps facilities maintain stable performance and extend the life of their mixed bed resin. Properly managed resin regeneration programs reduce operational risk and ensure treated water consistently meets system requirements.

Learn more about our high-purity water treatment services in CT, MA, NY, and NJ. Contact ClearWaterfor further inquiries.
