What Is Ion Exchange Resin and How It Works in Water Systems

Water quality plays a critical role in the performance and reliability of commercial and industrial systems. From boiler operations and cooling equipment to high-rise plumbing and manufacturing processes, untreated water can introduce dissolved ions that contribute to scaling, corrosion, equipment inefficiency, and increased maintenance costs. Understanding what is ion exchange resin is important for facility managers and engineers who rely on consistent water quality to protect infrastructure and maintain operational performance.

Ion exchange resins are specialized materials used in water treatment systems to remove unwanted minerals, dissolved salts, and other contaminants from water supplies. These materials support a wide range of applications, including water softening, industrial water treatment, water purification, and ultrapure water production. In commercial facilities, ion exchange systems are commonly used to reduce hardness, improve boiler efficiency, and support reverse osmosis pretreatment processes.

For schools, commercial buildings, healthcare facilities, and industrial operations throughout the Northeast, water chemistry can vary significantly due to seasonal conditions and regional water sources. Properly designed ion exchange resins help facilities maintain reliable water quality while minimizing operational issues caused by calcium, magnesium, and other dissolved ions that affect system performance.

What Is Ion Exchange Resin?

Ion exchange resin is a synthetic material designed to remove unwanted dissolved ions from water and replace them with more desirable ions through a controlled chemical process. These materials are widely used in commercial and industrial water treatment because they can selectively remove minerals, dissolved salts, and contaminants that affect water quality and equipment performance.

Most ion exchange resins are manufactured as small resin beads that contain specialized chemical structures capable of attracting and exchanging ions. The beads are housed inside ion exchange systems, where water flows through a resin bed and interacts with the exchange resin during treatment. As water passes through the system, dissolved ions attach to active exchange sites on the resin surface while other ions are released into the water.

The Basic Structure of Ion Exchange Resins

The effectiveness of ion exchange resins comes from their internal resin matrix and chemical composition. Most commercial resins are built using a polymer matrix, often made from a polystyrene matrix or acrylic polymer materials. These structures are engineered to withstand demanding industrial water conditions while maintaining chemical resistance across a wide pH range.

Attached to the polymer matrix are functional groups that determine how the resin behaves during treatment. These functional groups create ion exchange sites where exchangeable ions can attach or be released during operation.

The physical properties of the resin, including bead size, porosity, and cross linking, influence how efficiently the resin performs under different operating conditions.

How Resin Beads Store and Exchange Ions

Inside the resin beads are charged chemical groups that attract oppositely charged ions present in the water supply. During the ion exchange process, the resin temporarily holds certain ions while releasing existing ions already attached to the bead structure.

For example, in water softening applications, hardness ions such as calcium ions and magnesium ions are removed from the water and replaced with sodium ions. This exchange helps reduce scale formation in boilers, piping systems, and other commercial equipment.

Because the process depends on reversible ion exchange reactions, the resin can later be restored through resin regeneration and reused repeatedly.

Cation vs. Anion Exchange Resins

There are two primary categories of exchange resin used in water treatment applications:

• Cation exchange resins remove positively charged ions such as calcium, magnesium, sodium, and hydrogen ions.
• Anion exchange resins remove negatively charged ions such as chloride ions, sulfates, and nitrates.

A cation resin contains negatively charged functional groups that attract positively charged ions, while anion resins contain positively charged groups designed to attract negative ions.

Different resin types are selected based on the water chemistry, contaminants present, and treatment goals of the facility.

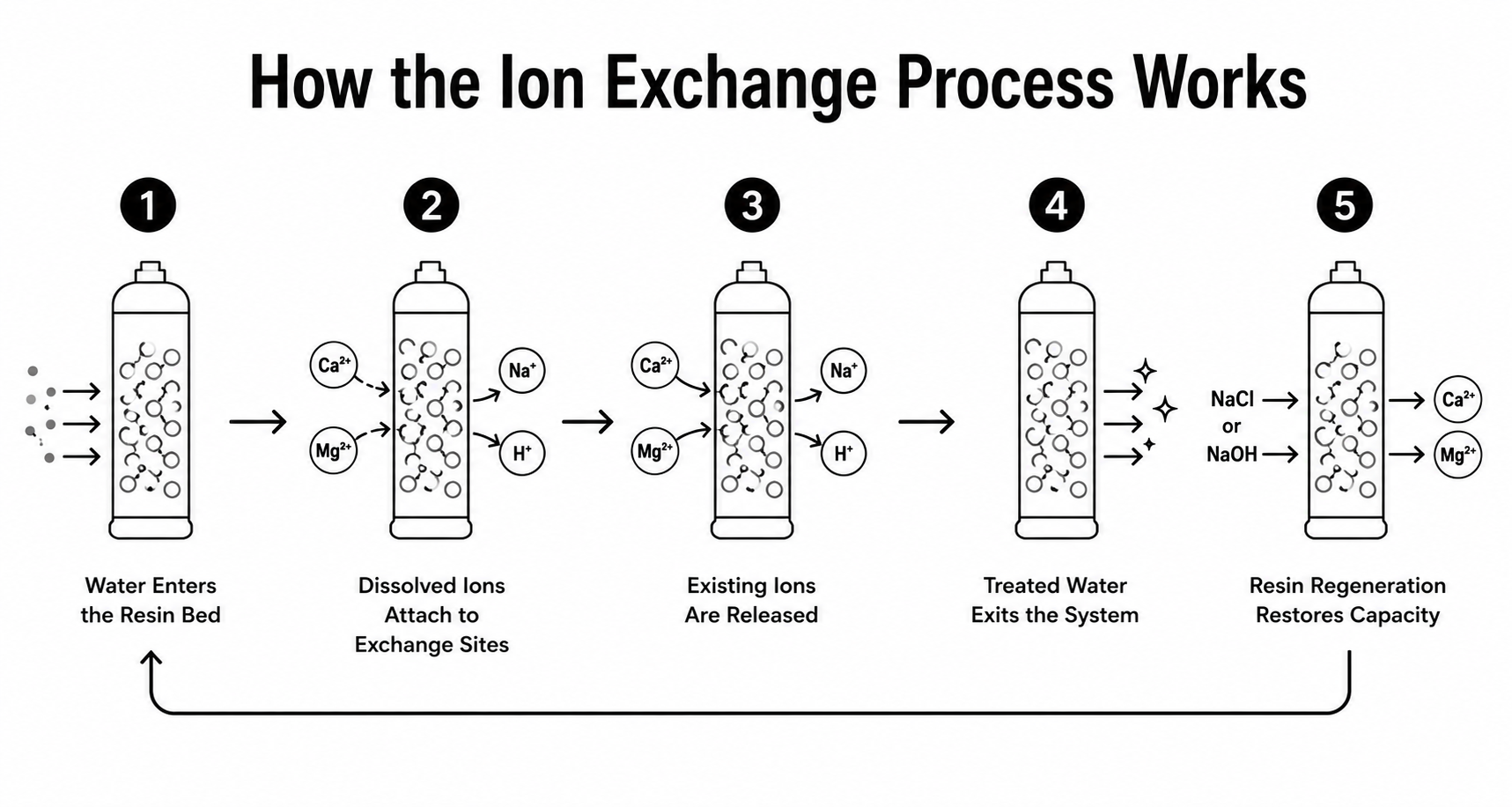

How the Ion Exchange Process Works

The ion exchange process works by transferring dissolved ions between water and specially designed ion exchange resin beads. As untreated water flows through a resin bed, unwanted ions are removed from the water and replaced with exchangeable ions attached to the resin surface. This controlled exchange helps improve water quality for commercial and industrial water treatment applications.

In many systems, ion exchange is used to remove hardness ions, dissolved salts, and other contaminants that contribute to scaling, corrosion, or operational inefficiencies. The process is widely used in water softening, water purification, and ultrapure water production systems because it provides consistent and selective removal of specific ions.

Step 1: Water Enters the Resin Bed

The treatment cycle begins when untreated water enters the ion exchange systems and flows through the resin bed. The water contains dissolved ions such as calcium ions, magnesium ions, chloride ions, and other ions that may negatively affect equipment performance or water quality.

Inside the resin bed, thousands of ion exchange sites are available for chemical exchange reactions to occur.

Step 2: Dissolved Ions Attach to Exchange Sites

As water moves through the system, the resin attracts ions with opposite electrical charges. In a cation exchange system, positively charged ions are attracted to negatively charged functional groups on the resin surface. In anion exchange systems, negatively charged ions attach to positively charged exchange sites.

The ion exchange resin selectively removes ions present in the water based on the resin type and chemical affinity of the ions involved.

Step 3: Existing Ions Are Released

When unwanted dissolved ions attach to the resin, the existing ions already attached to the exchange resin are released into the water. This is considered a reversible chemical reaction because the exchange can later be reversed during regeneration.

For example:

• Strong acid cation resins commonly release sodium ions while capturing calcium and magnesium hardness ions.
• Some cation exchange systems use hydrogen ions instead of sodium for specialized industrial applications.
• Anion exchange systems may release hydroxide ions while removing chloride ions or other negative ions from water.

These ion exchange reactions continue until most available exchange sites become occupied.

Step 4: Treated Water Exits the System

After passing through the resin matrix, the treated water exits the system with reduced concentrations of dissolved salts and contaminants. Depending on the application, the treated water may be used for:

• Boiler pretreatment
• Water softening
• Drinking water treatment
• Industrial process water
• Water purification systems
• Ultrapure water production

The efficiency of the process depends on water chemistry, flow rate, resin type, and the condition of the ion exchange resin beads.

Step 5: Resin Regeneration Restores Capacity

Over time, the resin becomes saturated with captured ions and loses its treatment capacity. At this stage, the regeneration process is required to restore the resin for continued use.

During resin regeneration:

• A caustic solution or brine solution is introduced into the system.
• Sodium hydroxide is commonly used for anion exchange regeneration.
• Sodium chloride solutions are often used for water softening systems.
• Captured ions are displaced and flushed from the resin bed.

This process restores the resin’s ability to continue removing dissolved ions from incoming water supplies.

Key Benefits of the Ion Exchange Process

• Removes hardness ions that contribute to scale formation
• Supports consistent water purification performance
• Reduces dissolved salts in industrial water systems
• Improves efficiency in commercial equipment
• Helps protect boilers, piping, and heat exchange surfaces
• Enables selective removal of unwanted contaminants

Types of Ion Exchange Resins

Different types of ion exchange resins are designed to target specific contaminants and water treatment objectives. Selecting the correct resin type is important because each material has unique chemical properties, operating characteristics, and treatment capabilities. In commercial and industrial water treatment systems, the choice of resin affects efficiency, water quality, chemical consumption, and long-term operating costs.

The most common resin categories are classified by the type of ions they remove and the functional groups attached to their polymer structure.

Strong Acid Cation Resins

Strong acid cation resins are among the most widely used cation exchange resins in commercial water treatment. These materials contain functional groups capable of exchanging positively charged ions across a wide pH range.

In water softening applications, strong acid cation resins remove calcium ions and magnesium ions by replacing them with sodium ions. This helps reduce scale buildup in boilers, heat exchangers, and piping systems.

These resins are commonly used in:

• Boiler water pretreatment
• Commercial water softening
• Industrial process water treatment
• Drinking water systems

Because of their durability and high exchange capacity, strong acid cation resins are frequently selected for demanding industrial water environments.

Weak Acid Cation Resins

Weak acid cation resins are designed to remove temporary hardness and alkalinity from water supplies. Unlike strong acid cation systems, these resins operate most effectively under specific water chemistry conditions.

Weak acid cation materials can help reduce chemical consumption in certain treatment applications because they require less regenerant during the regeneration process. They are often used as pretreatment systems ahead of reverse osmosis or deionization equipment.

These systems are typically selected when:

• Water contains high bicarbonate alkalinity
• Facilities want to reduce operating costs
• Pretreatment optimization is needed

Strong Base and Weak Base Anion Resins

Anion exchange resins remove negatively charged ions from water supplies. The two primary categories are strong base anion resins and weak base anion systems.

Strong base systems, often called SBA resins, contain quaternary ammonium groups that allow them to remove a broad range of dissolved contaminants, including chloride ions, sulfates, nitrates, and dissolved salts. These systems are commonly used in water purification and pure water production processes.

Weak base anion resins use amine functional groups and are particularly effective for removing strong mineral acids from industrial water streams. They are frequently used in demineralization systems and specialized industrial applications.

Mixed Bed Resins

Mixed bed resins combine cation exchange and anion exchange materials within a single resin bed. This configuration allows the system to produce extremely high-purity water by removing both positively charged ions and negatively charged ions simultaneously.

These systems are commonly used in:

• Ultrapure water production
• Pharmaceutical manufacturing
• Electronics manufacturing
• Laboratory water systems

Because mixed bed systems provide highly polished water quality, they are often installed as the final treatment stage after reverse osmosis or primary deionization equipment.

Chelating and Specialty Resins

Chelating resins are specialized ion exchange materials designed for selective removal of specific ions, particularly heavy metals found in industrial wastewater streams. These resins use engineered functional groups that target contaminants such as copper, nickel, lead, and other dissolved metals.

Some specialty systems also use macroporous resins, which contain larger pore structures that improve performance when removing organic contaminants or treating difficult industrial water conditions.

Specialty ion exchange resins may be selected when facilities require:

• Heavy metal removal
• Treatment of acidic water
• Improved chemical resistance
• Selective removal of contaminants
• Compatibility with harsh industrial conditions

The final resin type selected depends on water chemistry, treatment objectives, operating conditions, and the physical properties required for long-term system performance.

Common Applications in Commercial Water Treatment

Ion exchange systems are widely used throughout commercial and industrial facilities because they help improve water quality, reduce operational problems, and protect critical equipment. By removing dissolved ions, dissolved salts, and other contaminants, ion exchange resins support more reliable system performance across a wide range of water treatment applications.

In commercial buildings, schools, manufacturing facilities, and institutional systems, ion exchange technology is commonly integrated into pretreatment programs, water purification systems, and industrial process operations.

Boiler Water Pretreatment

Boiler systems are highly sensitive to hardness ions and dissolved minerals. Without proper treatment, calcium ions and magnesium ions can accumulate on heat transfer surfaces, leading to scale formation, reduced efficiency, and higher operating costs.

Ion exchange systems are commonly installed as boiler pretreatment solutions to improve water quality before water enters the boiler.

Water Softening Systems

Water softening is one of the most common uses of ion exchange resin in commercial water treatment. During the ion exchange process, hardness ions are replaced with sodium ions, helping reduce mineral buildup throughout plumbing systems and connected equipment.

Reverse Osmosis Pretreatment

Reverse osmosis systems often require pretreatment to protect membranes from scaling and fouling. Ion exchange resins are frequently used ahead of RO systems to reduce dissolved salts and hardness that may damage membrane surfaces.

Industrial Wastewater Treatment

Ion exchange technology is also used in industrial wastewater and wastewater treatment systems to remove contaminants before discharge or reuse. Specialized resin types, including chelating resins and anion exchange materials, can selectively target heavy metals and other dissolved contaminants.

Facilities operating under environmental permits such as NPDES programs often use ion exchange technologies to help support discharge compliance and wastewater management goals.

Drinking Water and Water Purification Systems

Many commercial facilities use ion exchange systems as part of broader drinking water and water purification programs. These systems help improve water quality by reducing dissolved ions, unwanted minerals, and other contaminants that affect taste, equipment performance, or downstream treatment processes.

Food Processing and Industrial Manufacturing

Food processing and manufacturing operations often require carefully controlled water quality to maintain production standards and protect equipment. Ion exchange resins are used in these facilities to support consistent process water quality and reduce contamination risks.

Commercial Water Treatment Support for Northeast Facilities

Ion exchange systems are most effective when they are properly integrated into a larger commercial water treatment program. Facilities such as schools, healthcare buildings, manufacturing plants, hospitality properties, and commercial campuses often require more than standalone equipment. Long-term performance depends on water analysis, system monitoring, preventive maintenance, and ongoing operational support.

ClearWater Industries provides commercial water treatment services designed to help facilities improve efficiency, reduce scale and corrosion risks, and extend equipment life. Their programs commonly support systems such as commercial water softeners, industrial filtration systems, reverse osmosis equipment, boiler water treatment programs, and closed-loop water systems.

Related services include:

• Water softening and reverse osmosis integration for scale control and water purification
• Commercial water testing for dissolved solids, corrosion activity, pH, and microbiological risks
• Industrial filtration solutions that improve heat transfer and reduce fouling
• Reverse osmosis maintenance and pretreatment optimization
• Boiler water treatment programs designed to protect steam and condensate systems
• Closed-loop and glycol treatment programs for corrosion prevention and freeze protection
• Legionella monitoring and water management support for high-risk facilities

In addition to treatment program design, ClearWater Industries provides operator training, system evaluations, ongoing monitoring, emergency response support, and performance optimization services tailored to commercial and industrial water systems throughout the Northeast.

For facilities looking to improve water quality, protect critical equipment, and reduce long-term operating costs, ClearWater Industries can help develop a customized water treatment strategy built around your operational needs. Contact ClearWater Industries to learn more about commercial water treatment, ion exchange systems, and preventive maintenance solutions for your facility.

Frequently Asked Questions
